Hammer Crusher For Sale
Applicable materials:
Limestone, coal gangue, bluestone, coal briquette, soft and easy to crush materials, coal, construction waste, granite, cobble, pebble, sandstone, soft rock, ore, salt, plaster, brick and tile, etc.
Feeding size: 1-750mm
Power: 4-400 Kw
Capcity: 3-500 T/h
What is a Hammer crusher
Hammer crusher is a highly efficient medium and fine crushing equipment, widely used in mining, cement, building materials, chemical industry and other industries, suitable for crushing limestone, coal gangue, gypsum and other medium hardness materials. It is characterized by large crushing ratio, high output and low energy consumption, and can crush materials to less than 25mm at one time.
Types of Hammer Crushers We Sale
The hammer crushers produced by Henan Reacore can be divided into small hammer crushers, hammer crushers with legs, mobile hammer crushers, heavy hammer crushers, etc. according to the different structures and production capacity.

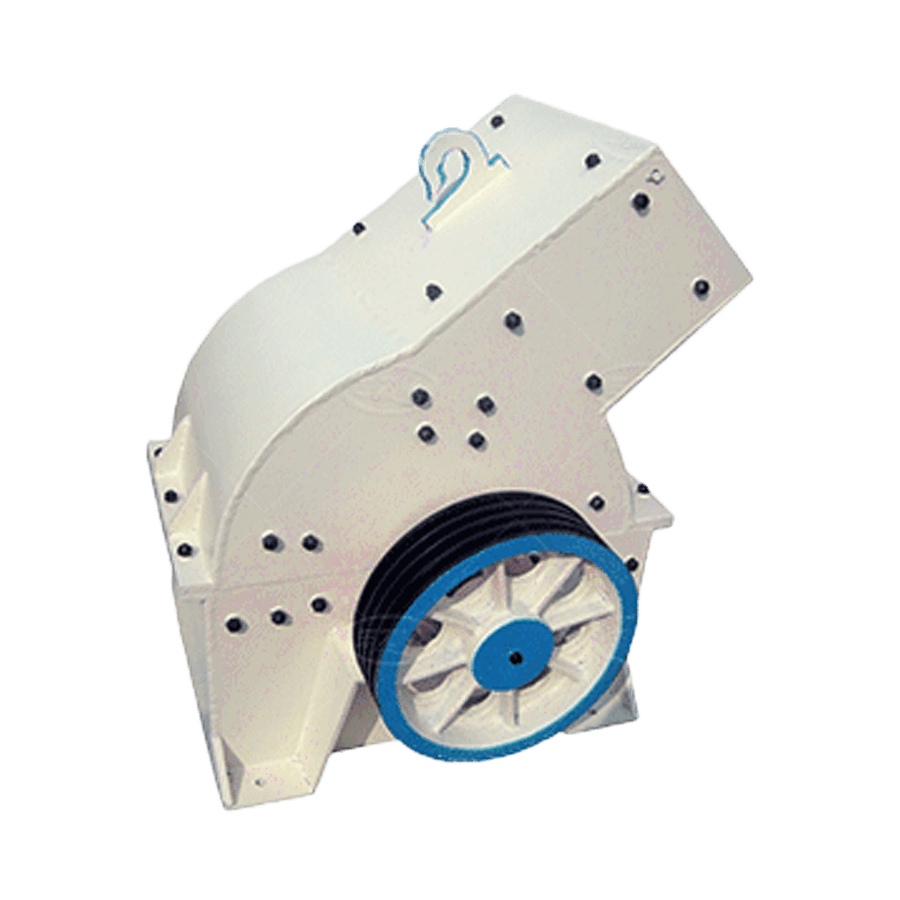

small hammer crusher
The small hammer crusher produced by Henan Reacore is also called a small sand making machine. The feed range is less than 750mm, the discharge range is less than 15mm, and the capacity is 3-500t/h.
small hammer crusher
This small crusher is suitable for various small projects with high output and low energy consumption.
Capacity: 1-25 t/h
Feeding size: ＜220 mm
Voltage:220v/380v/415v/440v/480v

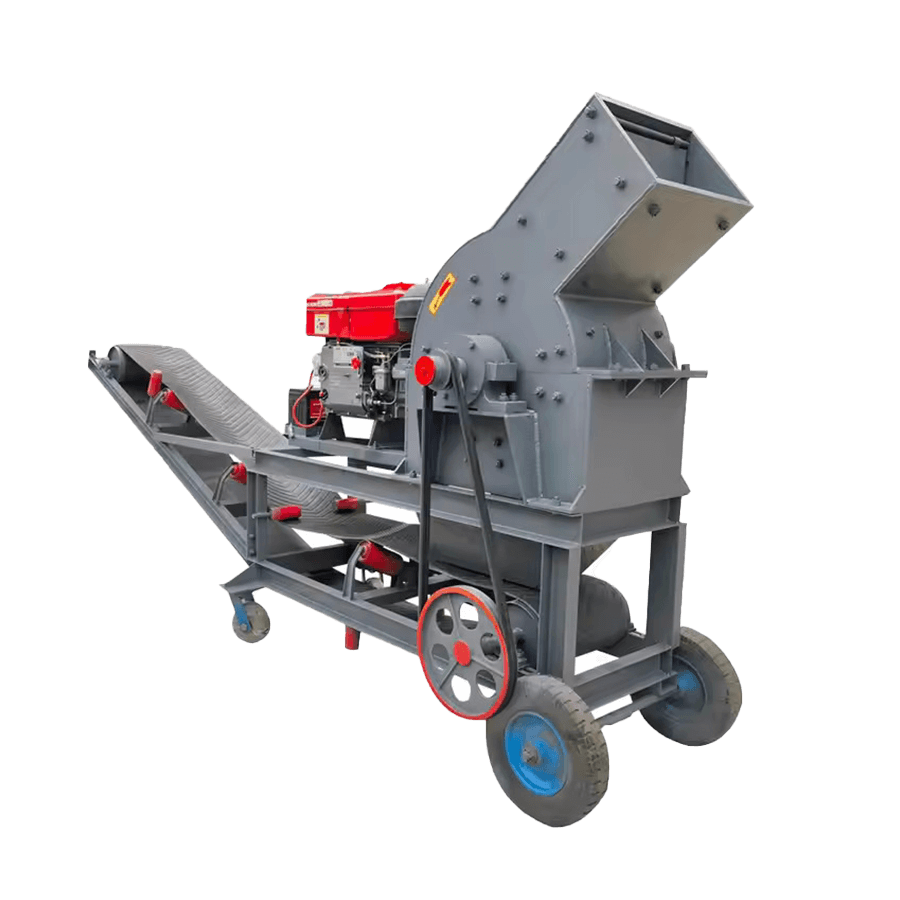

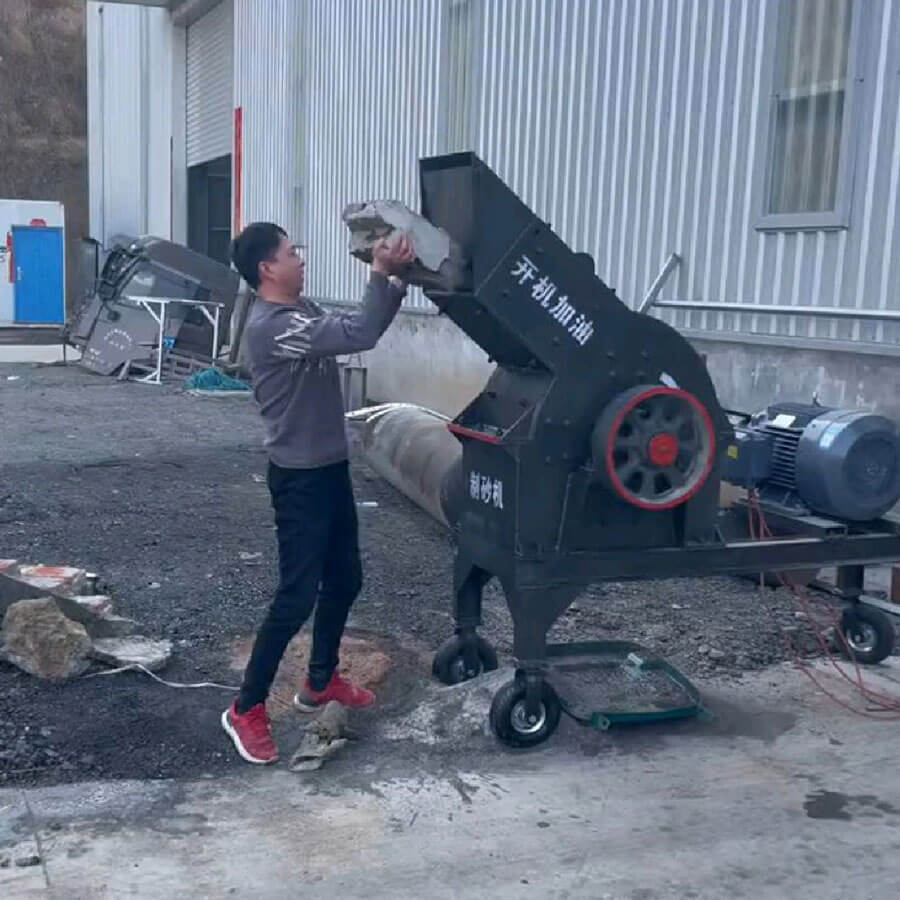

small mobile hammer crusher
The machine can be manually pushed and moved on site for efficient and convenient operation.
Capacity: 1-25 t/h
Feeding size: ＜220 mm
Voltage:220v/380v/415v/440v/480v

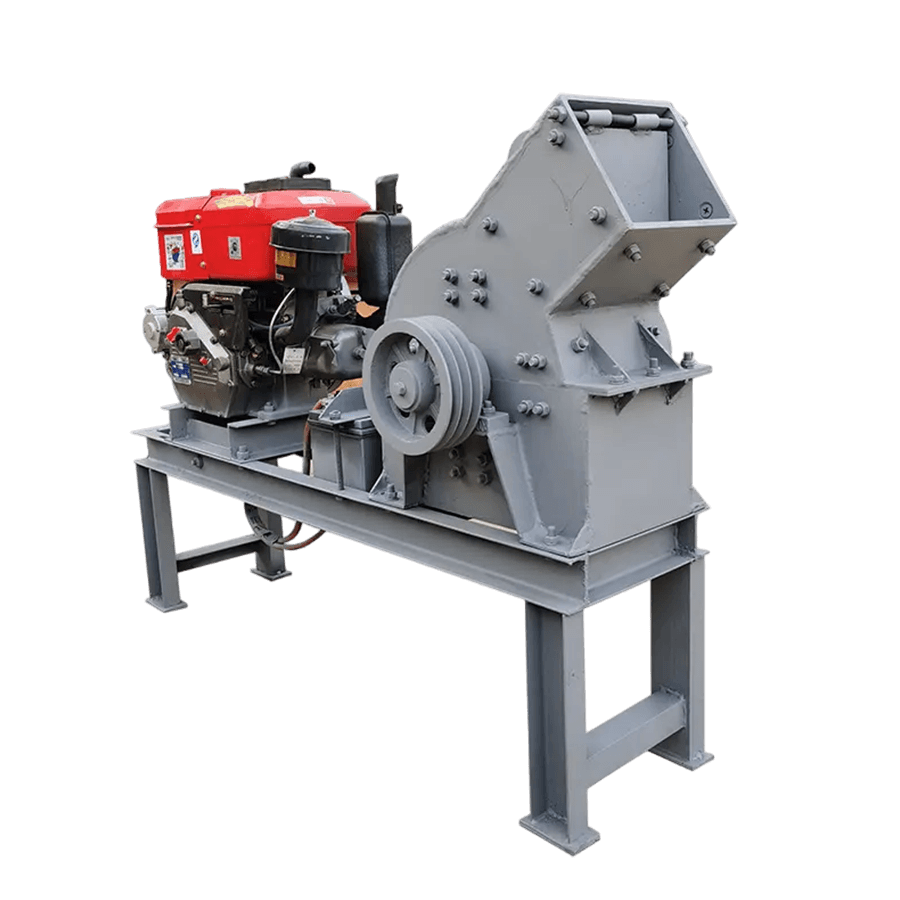

Hammer crusher with frame
This machine is suitable for crushing various ores. The entire machine occupies a small area and runs steadily.
Capacity: 1-25 t/h
Feeding size: ＜220 mm
Voltage:220v/380v/415v/440v/480v

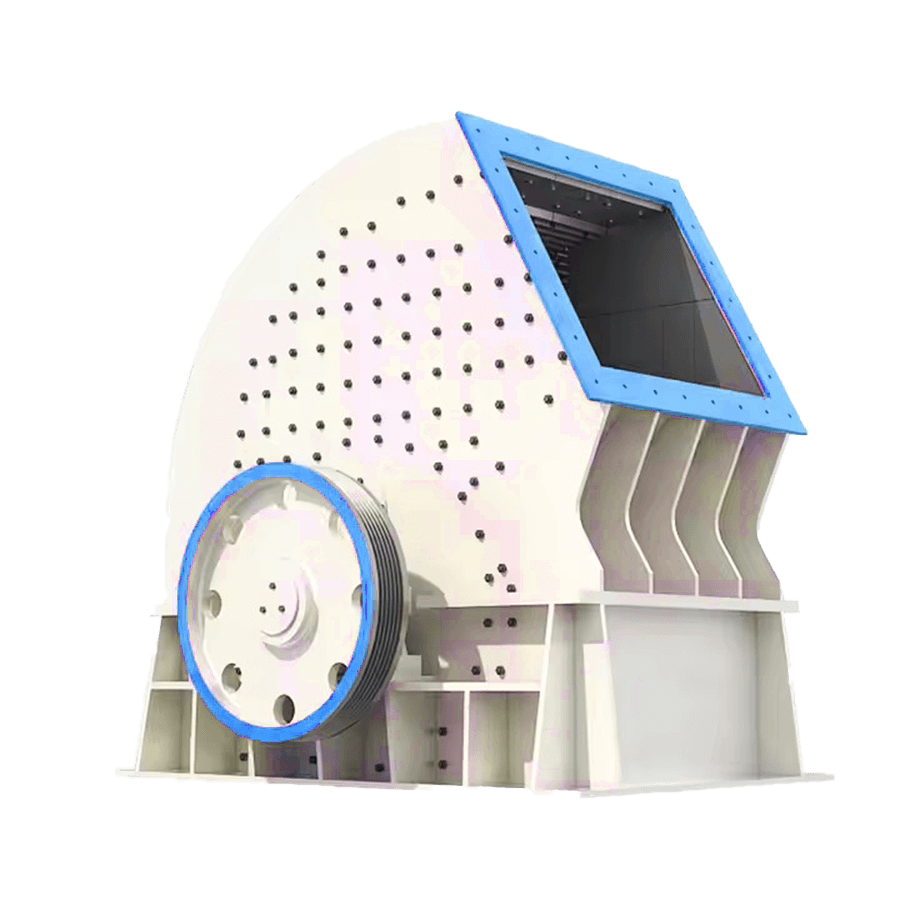

Heavy hammer crusher
The heavy hammer crusher is an enlarged version of the small hammer crusher. It has a larger production capacity, a feed range of 1-1000mm, and a capacity of 60-3000t/h.
Heavy hammer crusher
This machine is suitable for large projects, such as various ore crushing production lines. It has strong processing power and large output.
Capacity: 1-800 t/h
Feeding size: 1-1000 mm
Voltage:220v/380v/415v/440v/480v
Product Structure

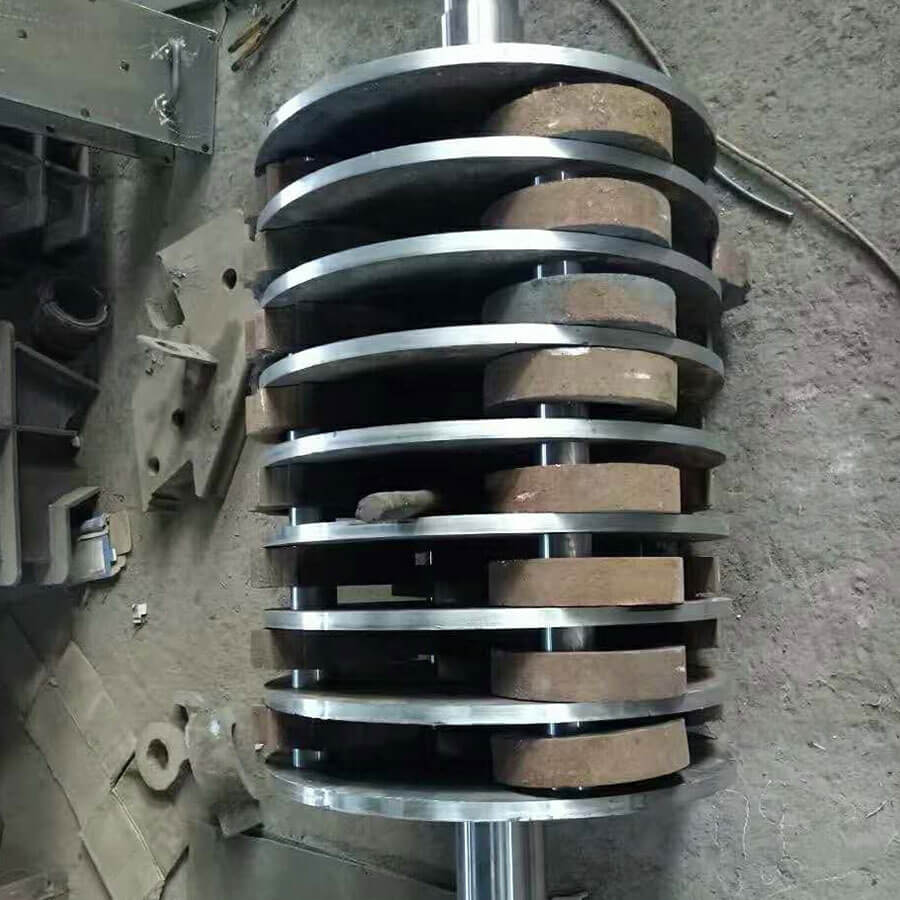

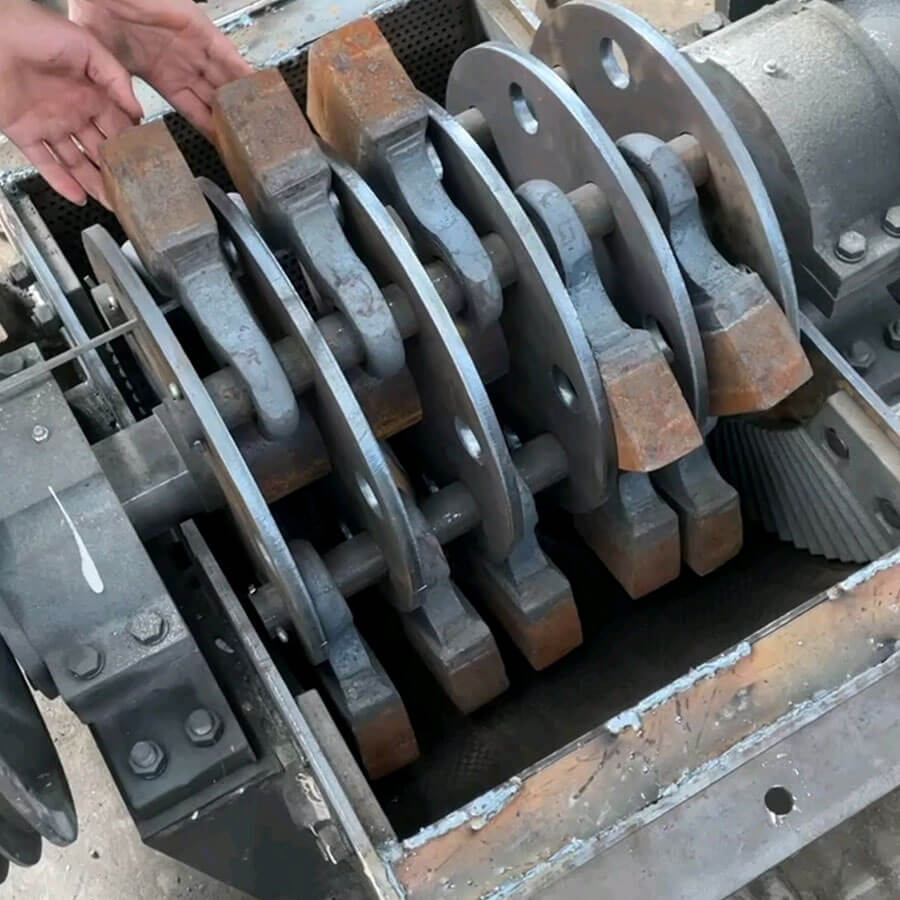

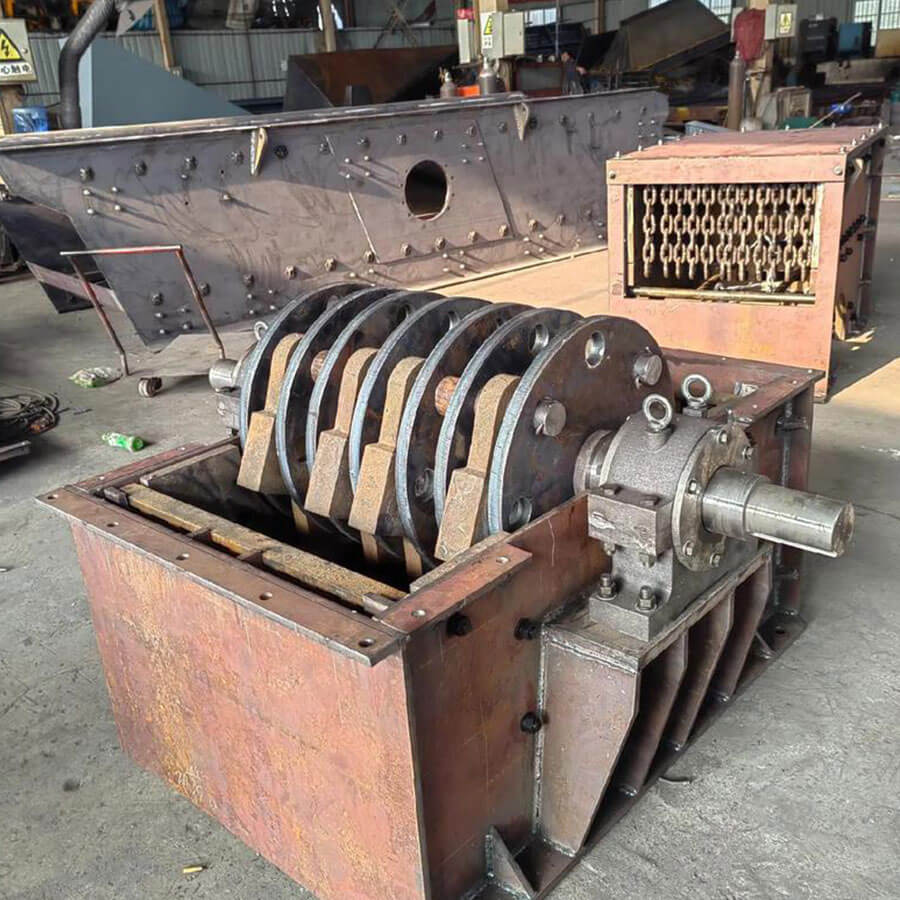

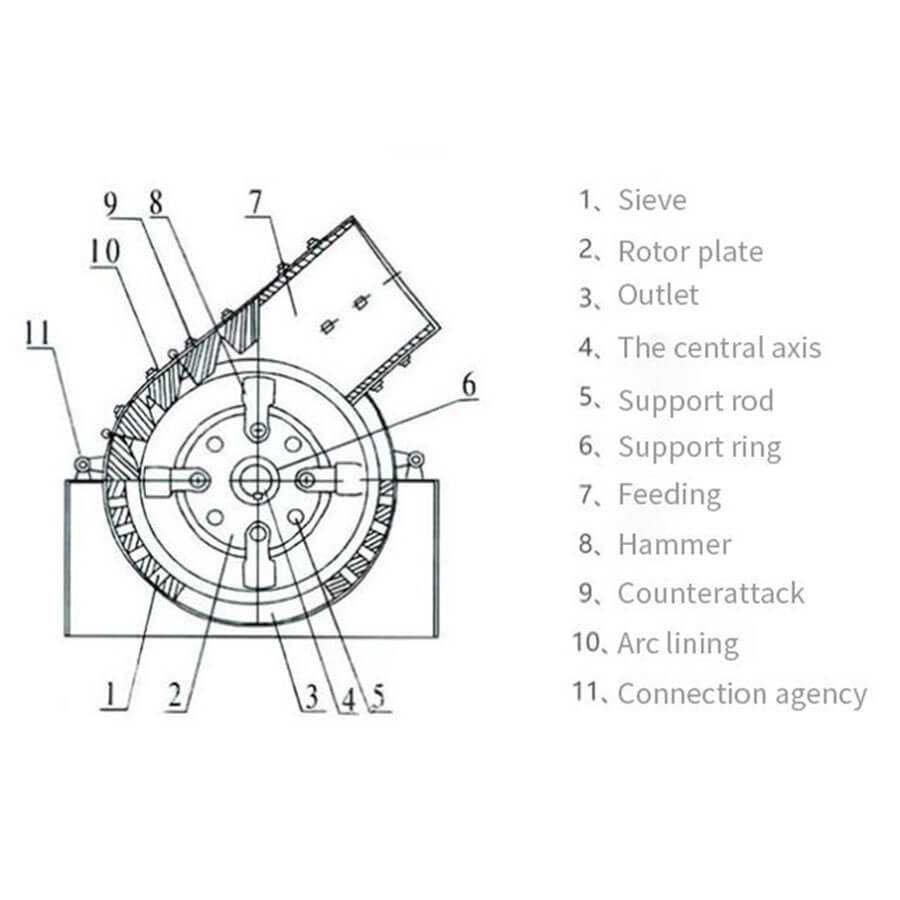

The hammer crusher is mainly composed of heavy steel frame, wear-resistant rotor and hammer head, screening and driving device.

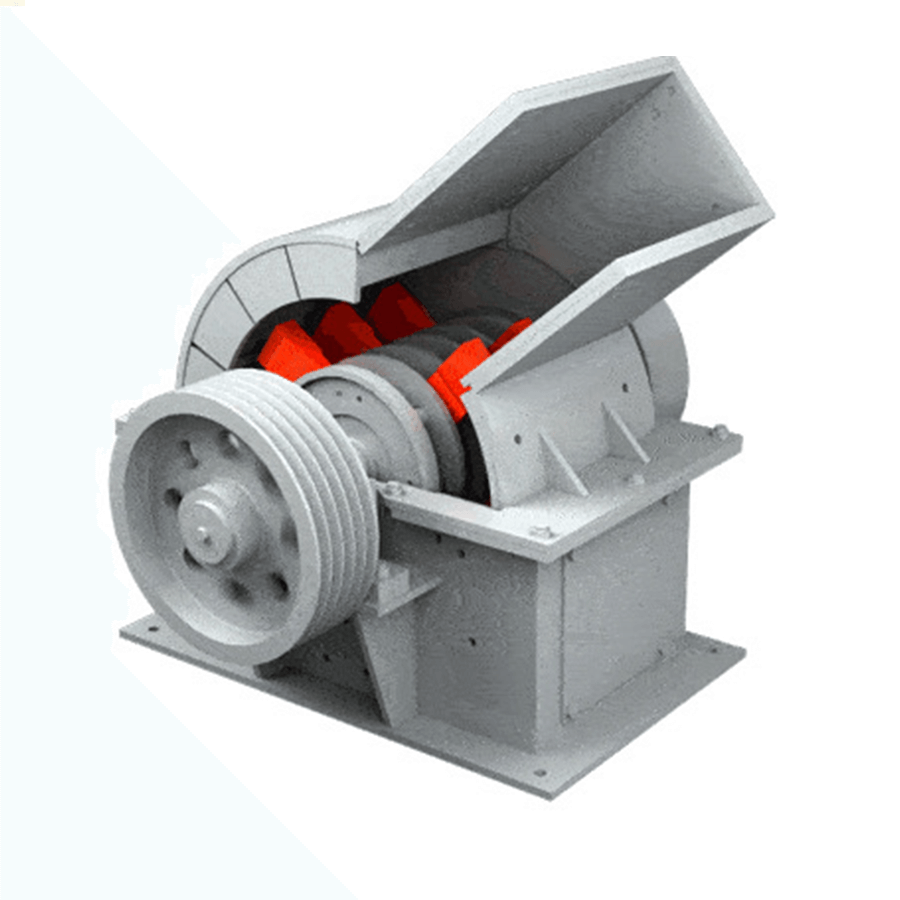

How it works
Material enters the crushing chamber and is struck, sheared, and ground by high-speed rotating hammers. Crushed material passes through the screen plate, while oversized particles are repeatedly impacted until reaching the desired size.

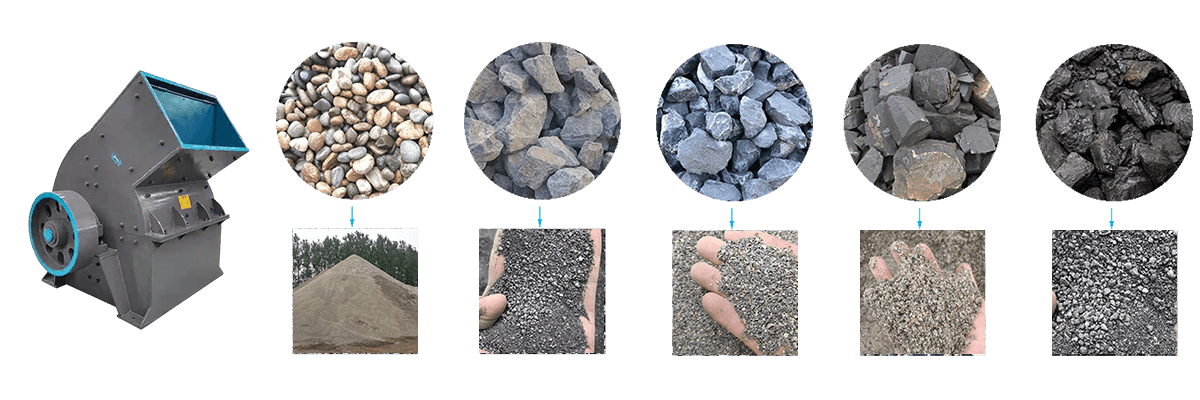

Application Areas
Hammer crushers is a kind of crushing equipment widely used in various industries such as mining, construction, metallurgy, cement, fertilizer, coal, glass, ceramics, etc. It is mainly used to crush brittle materials with medium hardness or below, such as limestone, coal, salt, gypsum, ore, etc.
Product Advantages
1. High Efficiency & Energy Saving: Optimized rotor dynamics reduce energy consumption by 30%.

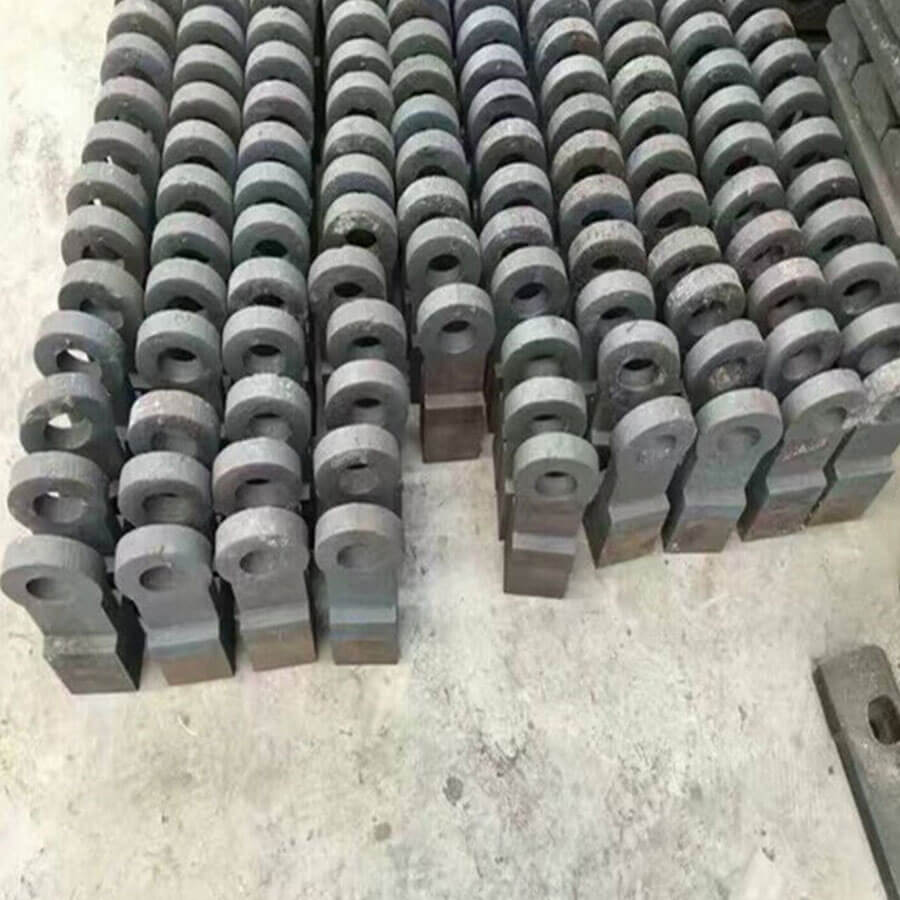

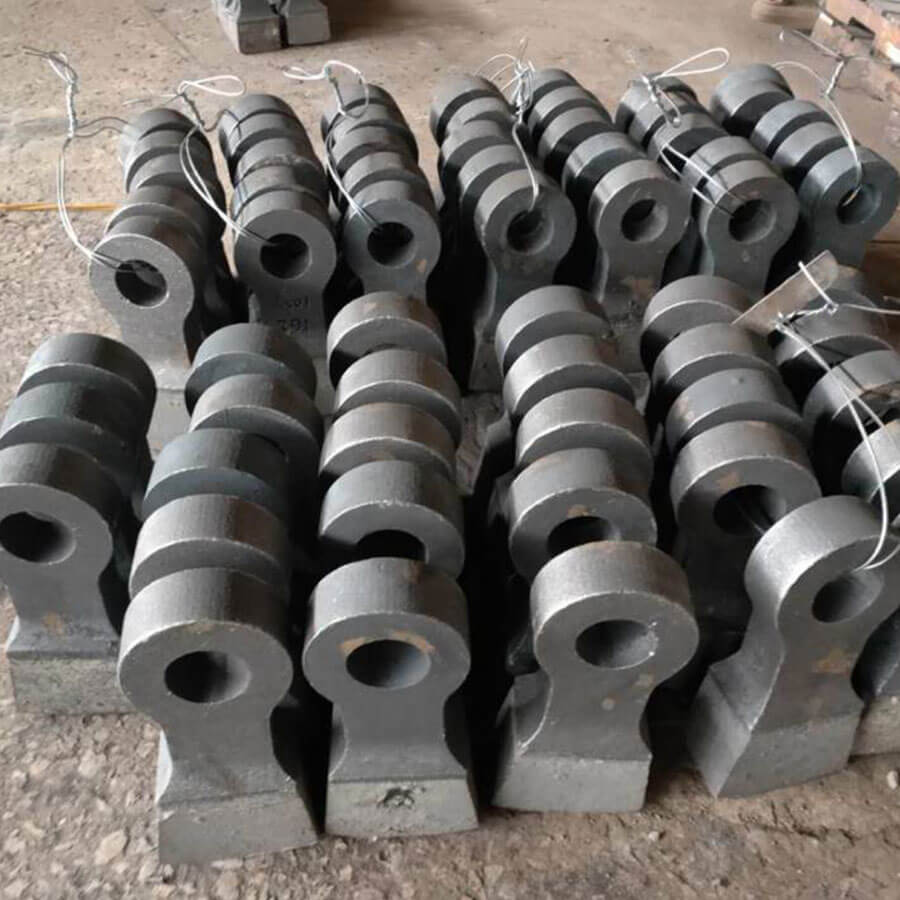

2.Superior Durability: High-chromium alloy hammers last 3x longer than standard materials.
3. Adjustable Output: Multiple screen plate options (5–25mm).
4. Eco-Friendly & Quiet: Enclosed design with noise <75dB.
Product Parameters
| Model | Input size(mm) | Discharge size(mm) | Capacity(t/h) | Power(kw) |
| pc200x300 | <70 | <15 | 3-5 | 4 |
| PC400x300 | <100 | <15 | 5-10 | 11 |
| PC600x400 | <220 | <15 | 10-25 | 22 |
| PC800x600 | <350 | <15 | 20-40 | 55 |
| PC1000x800 | <400 | <15 | 25-80 | 110 |
| PC1000x1180 | <650 | <15 | 250-300 | 132×2 |
| PC1200x1280 | <750 | <15 | 300-350 | 160×2 |
| PC1200x1590 | <750 | <15 | 400-500 | 200×2 |
Have you decided on the model you want to buy? If you can’t find the model you want, please contact us for consultation.

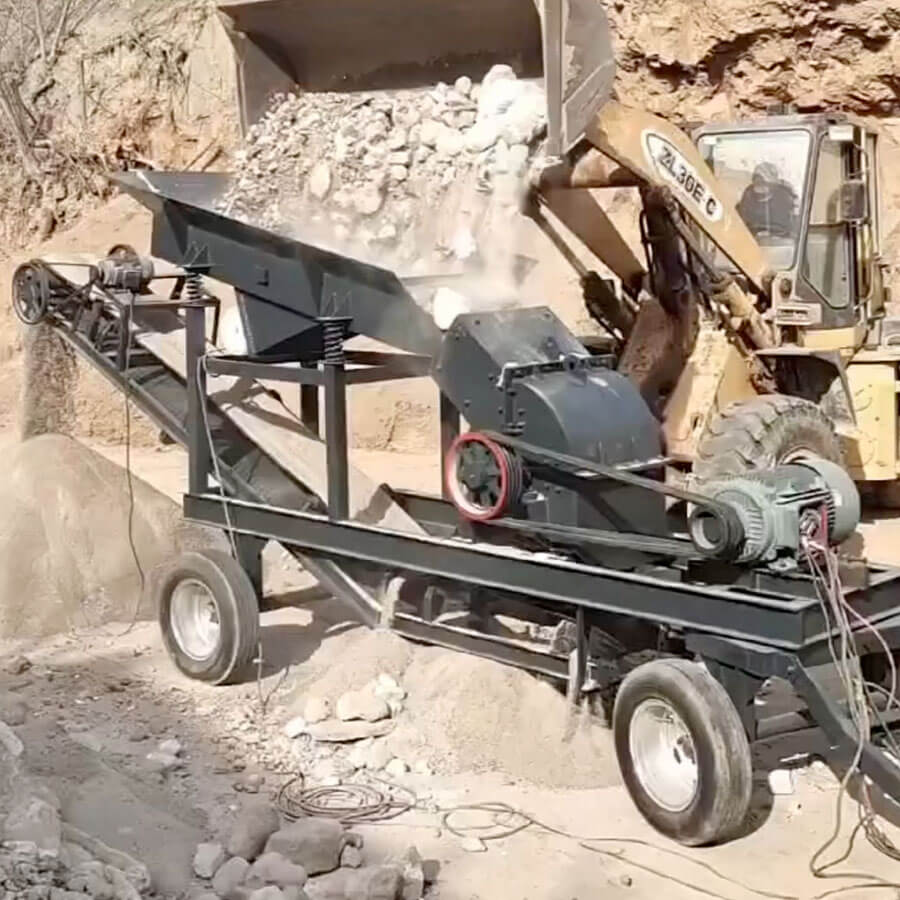

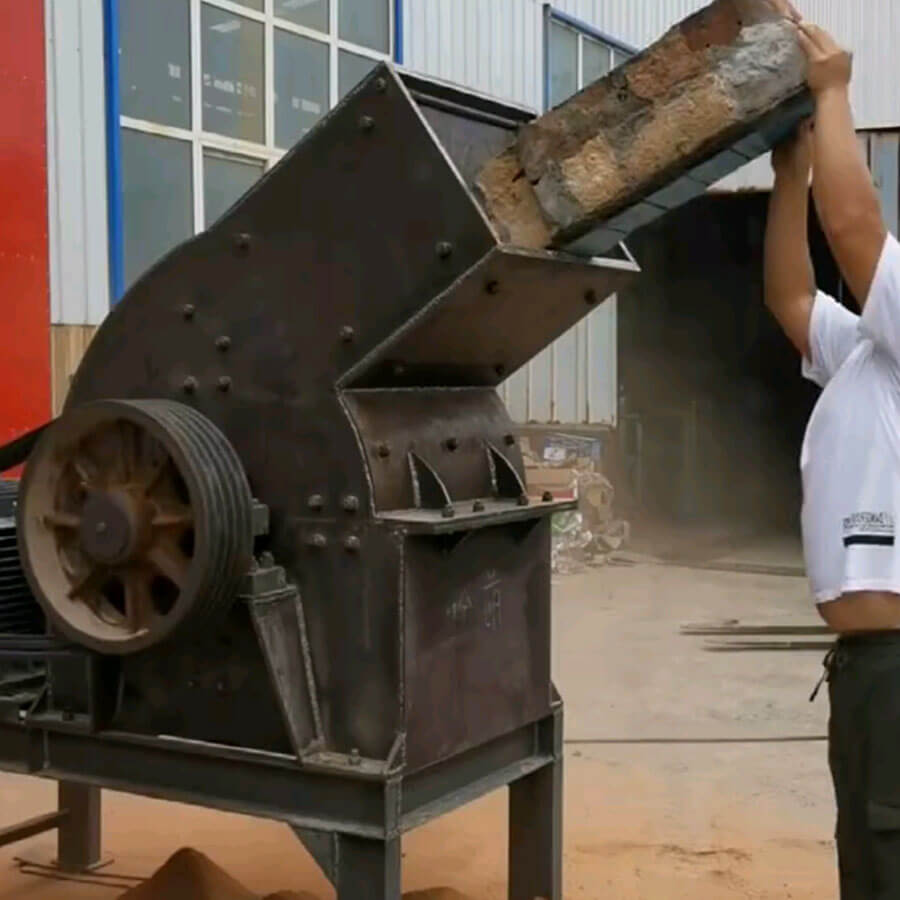

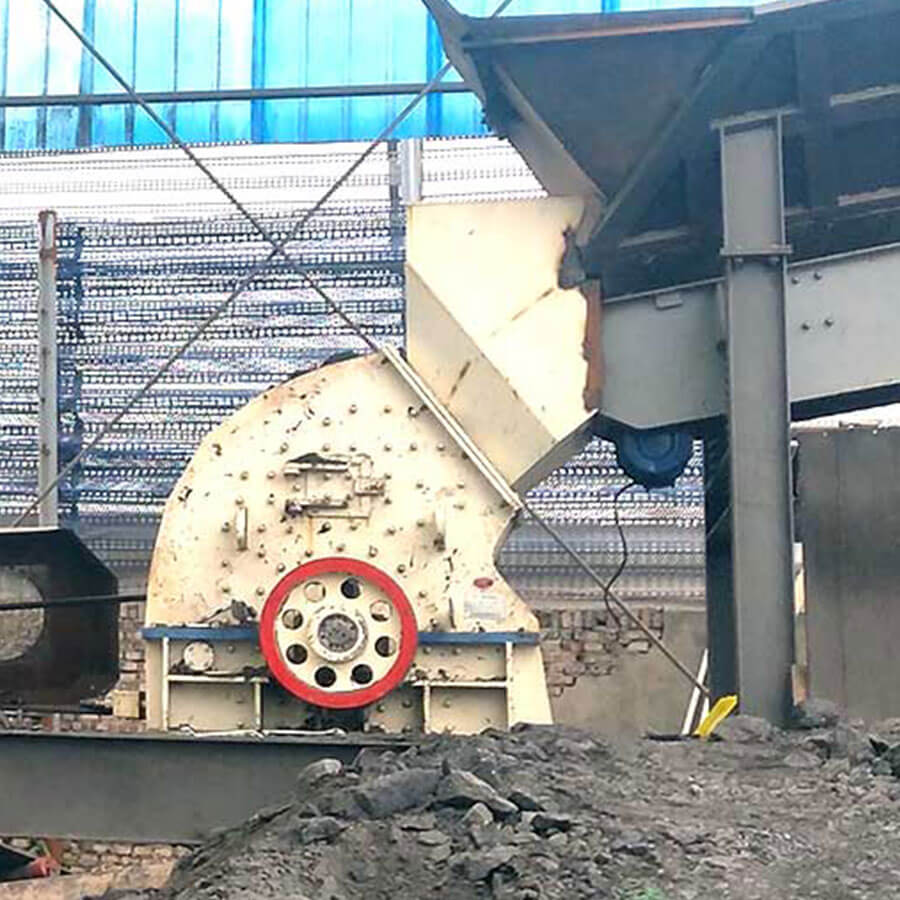

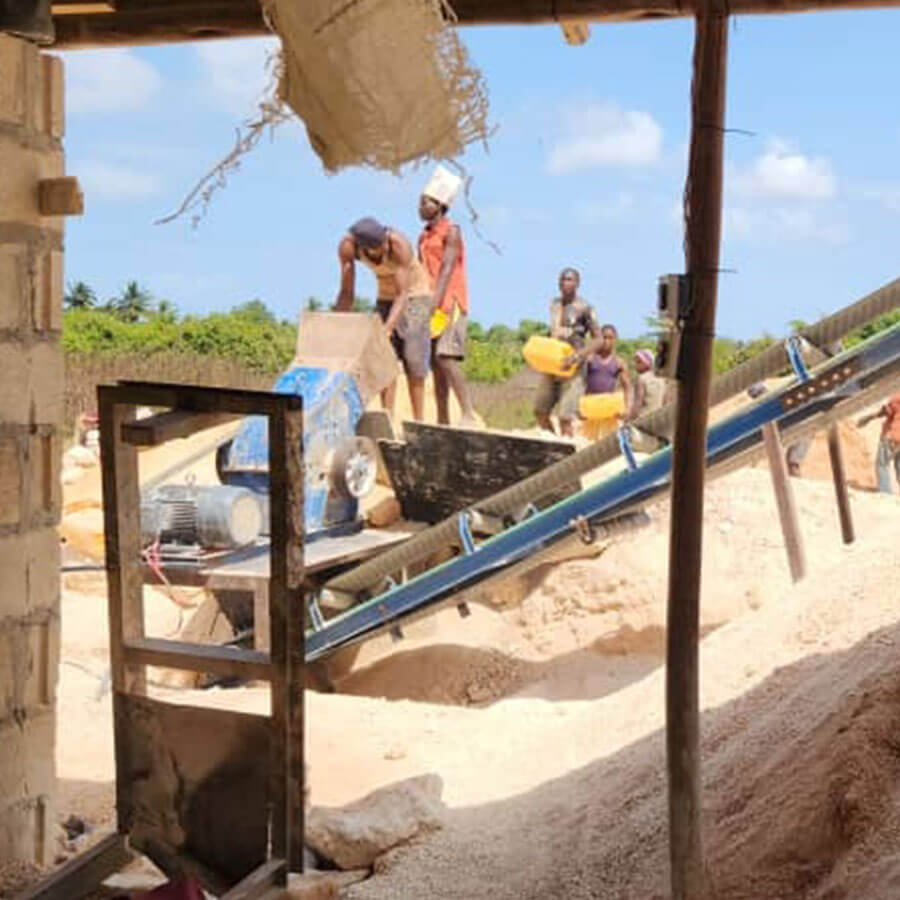

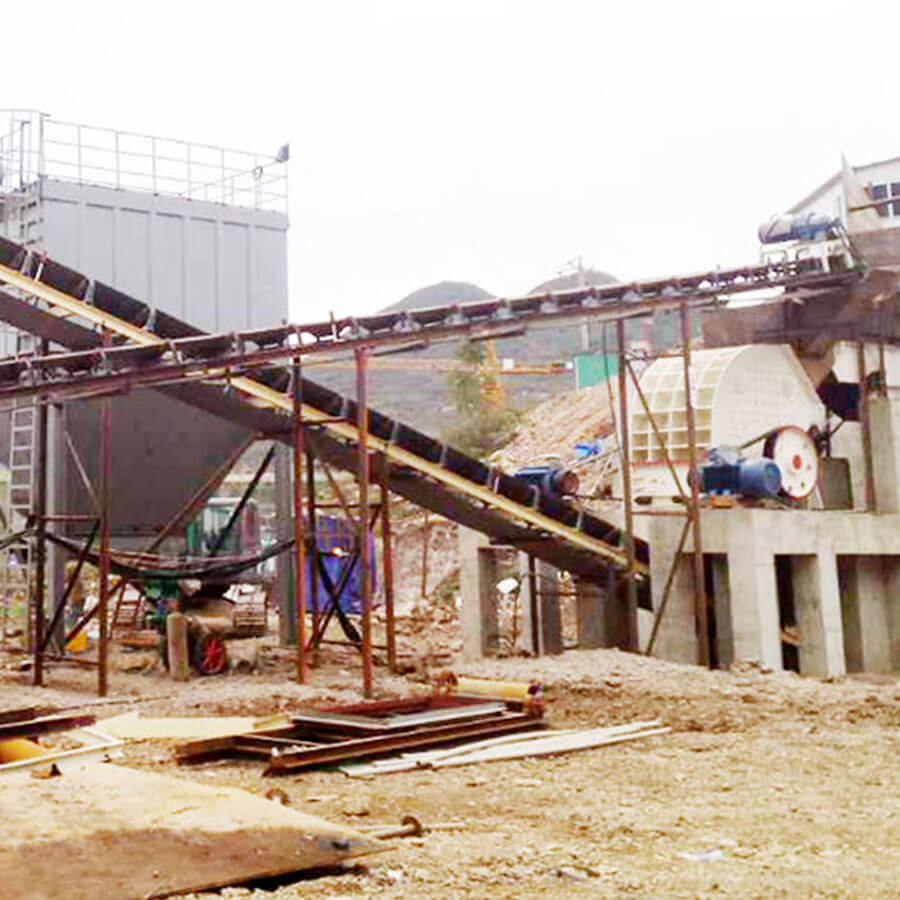

More related cases
The hammer crushers produced by Henan Reacore can be used for ore crushing. Whether it is the crushing operation in mining, metallurgy, construction, highway, railway, cement industry, or the secondary crushing of construction waste bricks, the hammer crushers of Henan Reacore is your best choice.
Why Choose Us
We have a professional team of engineers who can design and manufacture production solutions according to your needs.
We have a professional modern production workshop, and all the equipment leaving the factory has been quality inspected.
We have many years of manufacturing experience, all equipment is independently developed and produced, the price is more favorable.
We provide a full range of technical support and can provide you with high-quality purchasing services and after-sales services.
