Jaw Crusher For Sale

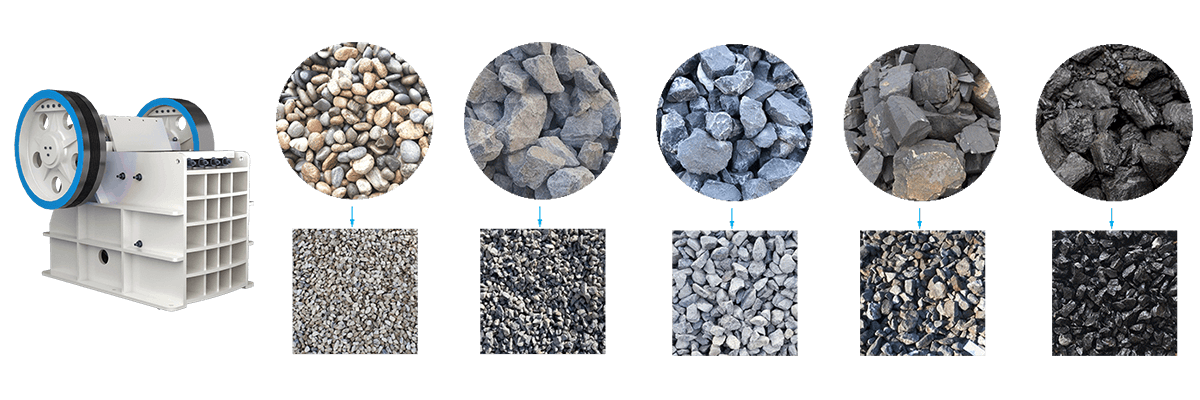

Applicable materials:
Iron ore, copper ore, gold ore, phosphate ore, silica ore, gypsum, granite, basalt, limestone, marble, quartz, pebbles, concrete blocks, bricks, waste brick slag, etc.
Feeding size: 150-1500 mm
Power: 5.5-220 Kw
Capcity: 1-800 T/h
What is a Jaw crusher
The jaw crushers is a primary crushing equipment widely used in mining, construction, and metallurgy industries for coarse and medium crushing of various hardness ores and bulk materials. Our jaw crushers adopts advanced design concepts and premium materials, featuring large crushing ratio, high output, uniform product size, simple structure, reliable operation, and easy maintenance.
Types of Jaw Crusher We Sale
The jaw crushers produced by Henan Reacore are generally divided into small jaw crushers, small mobile jaw crushers, jaw crushers with screens, jaw crushers with feeders, PE jaw crushers, PEX European version jaw crushers, etc. according to their capacity and structure.

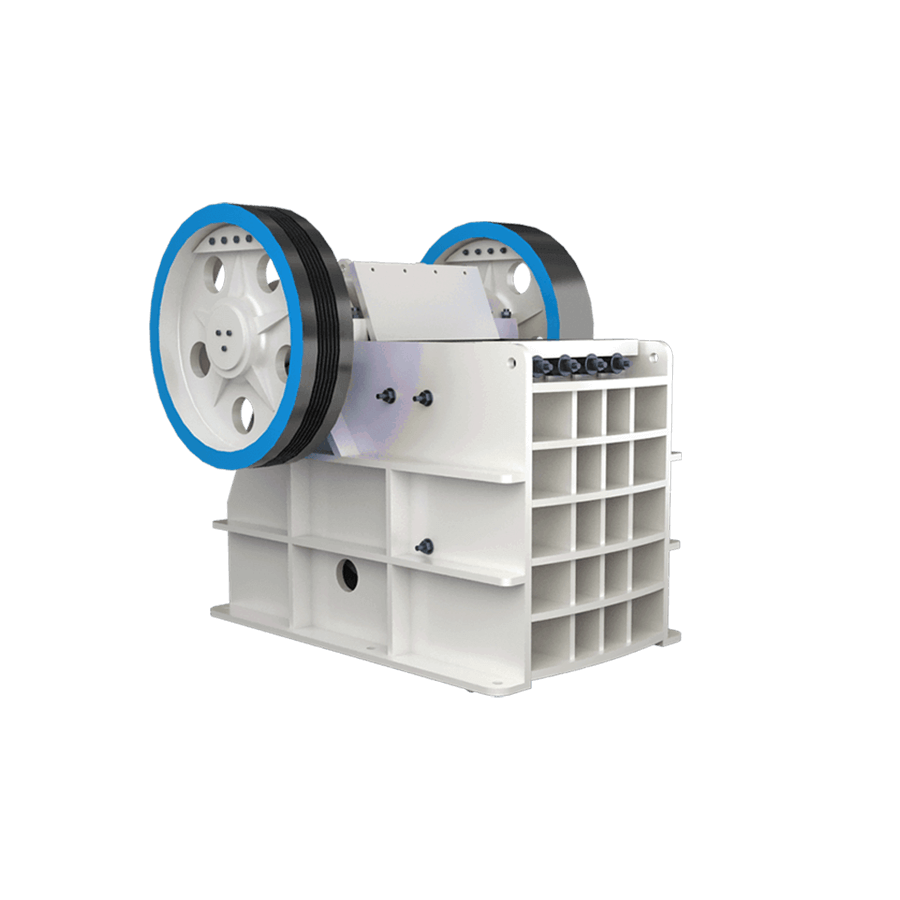

small jaw crusher
Small jaw crushers manufactured by Henan Reacore usually use electric motors or diesel engines as the power source, driving the V-belt to drive the flywheel to rotate and crush the material. Usually the capacity is 1-20t/h, and the feed size is less than 210mm.
small jaw crusher
The machine is suitable for small projects or personal use, and covers a small area and can crush various ores into stones.
Capacity: 1-20 t/h
Feeding size: 1-210 mm
Voltage:220v/380v/415v/440v/480v

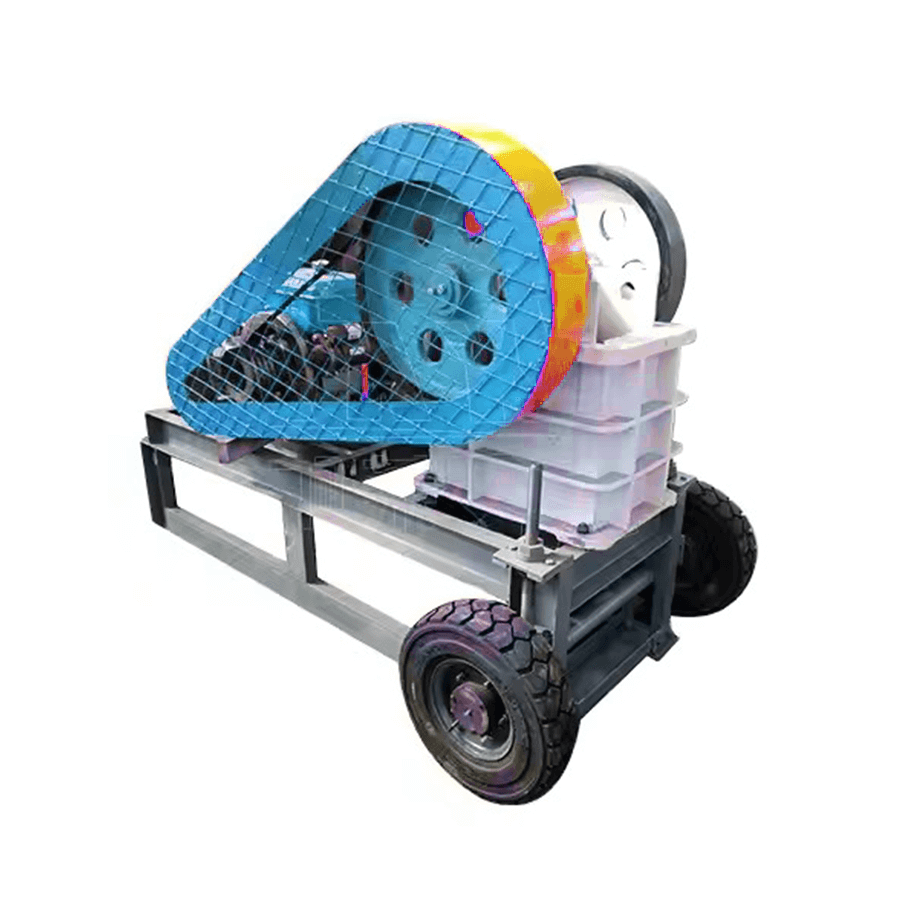

small mobile jaw crusher
The machine uses a wheel bracket, which can be used to manually push or traction, and is suitable for transfer operations.
Capacity: 1-20 t/h
Feeding size: 1-210 mm
Voltage:220v/380v/415v/440v/480v

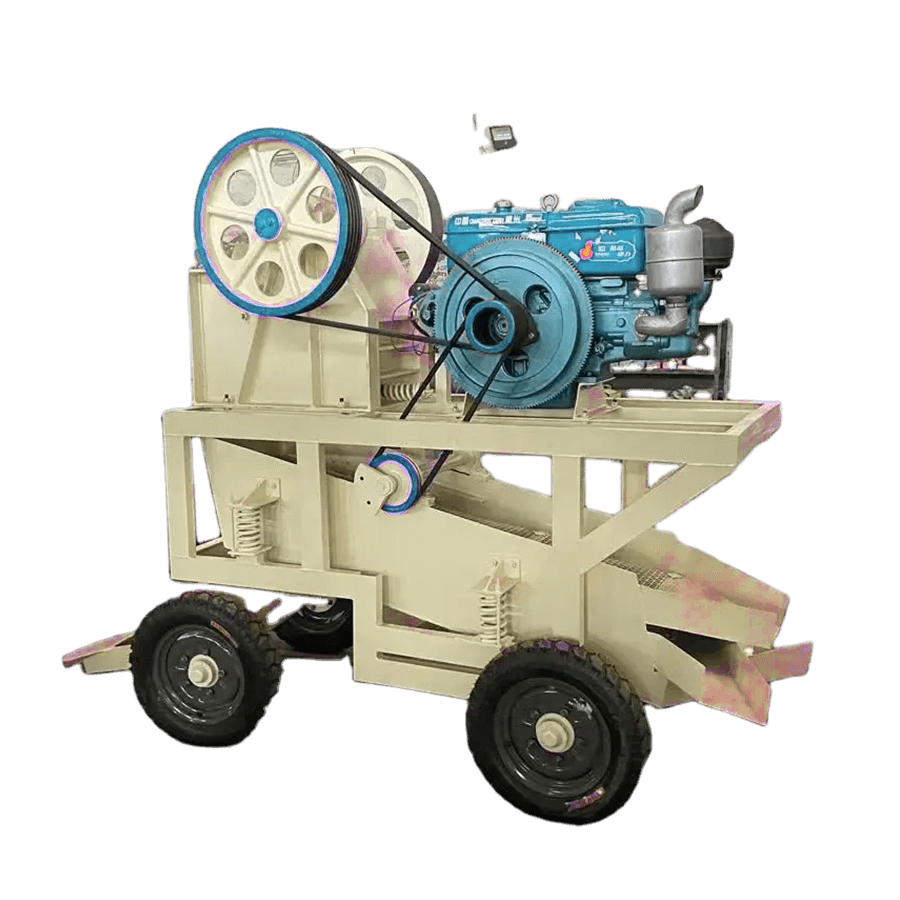

small jaw crusher with screen
The machine adopts an integrated crushing screening design, which greatly improves work efficiency and the bottom screen can be customized as needed.
Capacity: 1-20 t/h
Feeding size: 1-210 mm
Voltage:220v/380v/415v/440v/480v

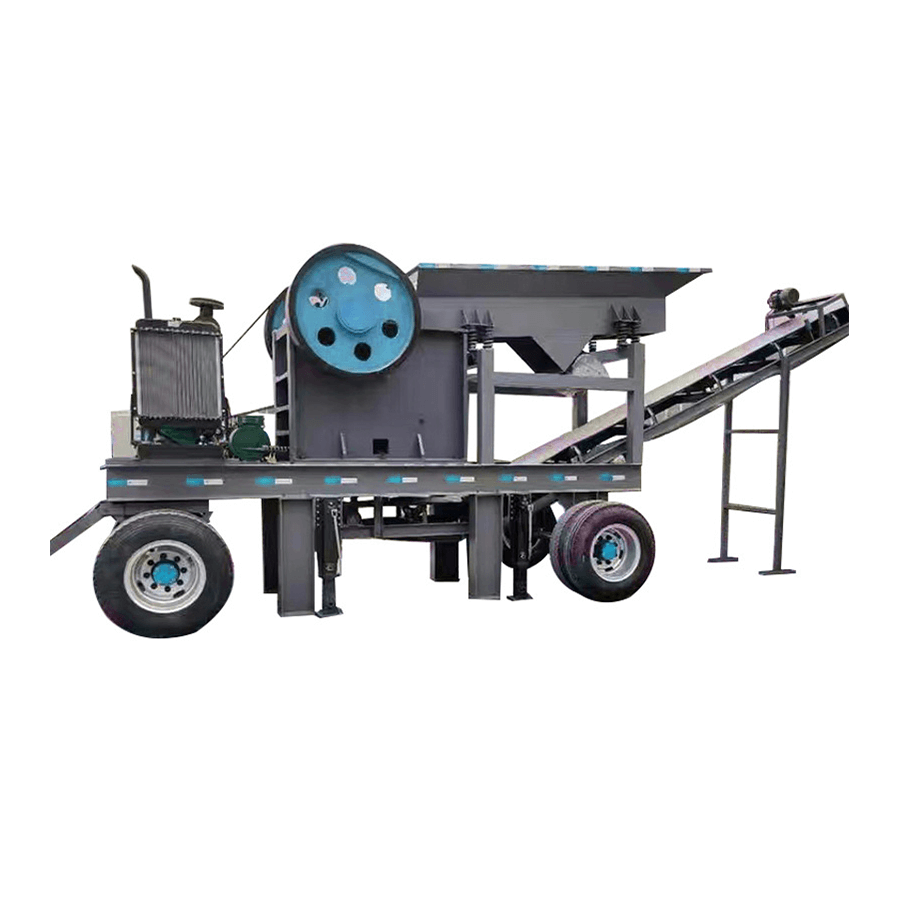

small jaw crusher with feeder
The machine combines feeding and crushing, has large processing capacity, and is efficient and convenient for feeding, making it suitable for various small and medium-sized ore crushing projects.
Capacity: 1-60 t/h
Feeding size: 1-340 mm
Voltage:220v/380v/415v/440v/480v

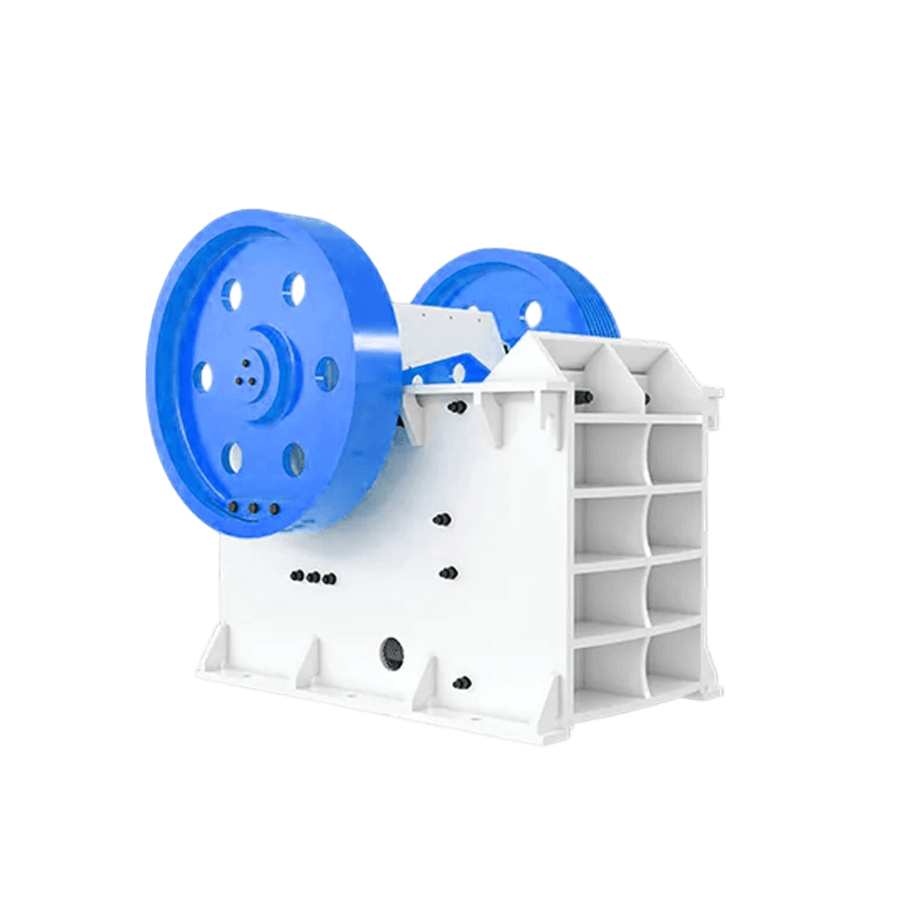

PE series jaw crusher
The PE series jaw crushers produced by Henan Reacore is widely used in primary crushing in mining, construction, metallurgy and other industries. The capacity can reach 1-800t/h and the feed force is less than 1000mm.
PE series jaw crusher
The PE series jaw crushers we produce optimize the machine design, improve the working efficiency of the machine and increase the service life.
Capacity: 1-800 t/h
Feeding size: 1-1000 mm
Voltage:220v/380v/415v/440v/480v

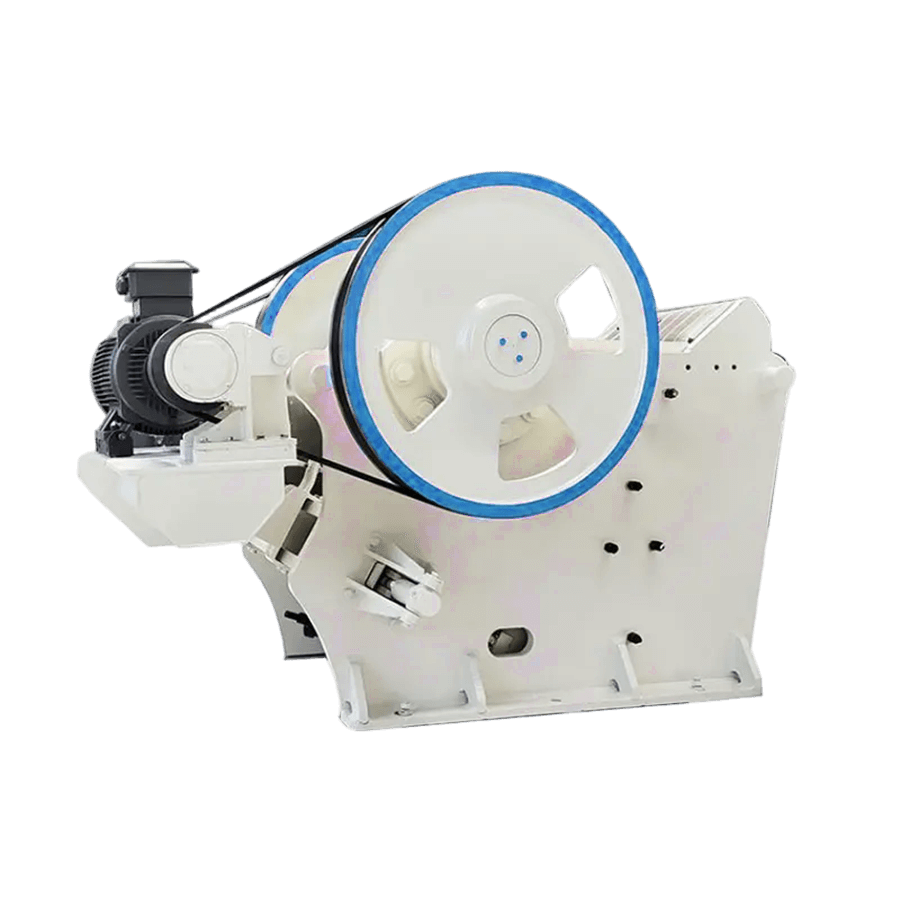

PEX series jaw crusher
The PEX series jaw crusher produced by Henan Reacore, also known as the European version jaw crushers, has a capacity of 8-95t/h and a feed force of less than 250mm.
PEX series jaw crusher
The PEX series European version jaw crushers plates we produce are thick, the machine runs stably and efficiently, and are suitable for various large sand and gravel production lines.
Capacity: 8-95 t/h
Feeding size: 1-250 mm
Voltage:220v/380v/415v/440v/480v

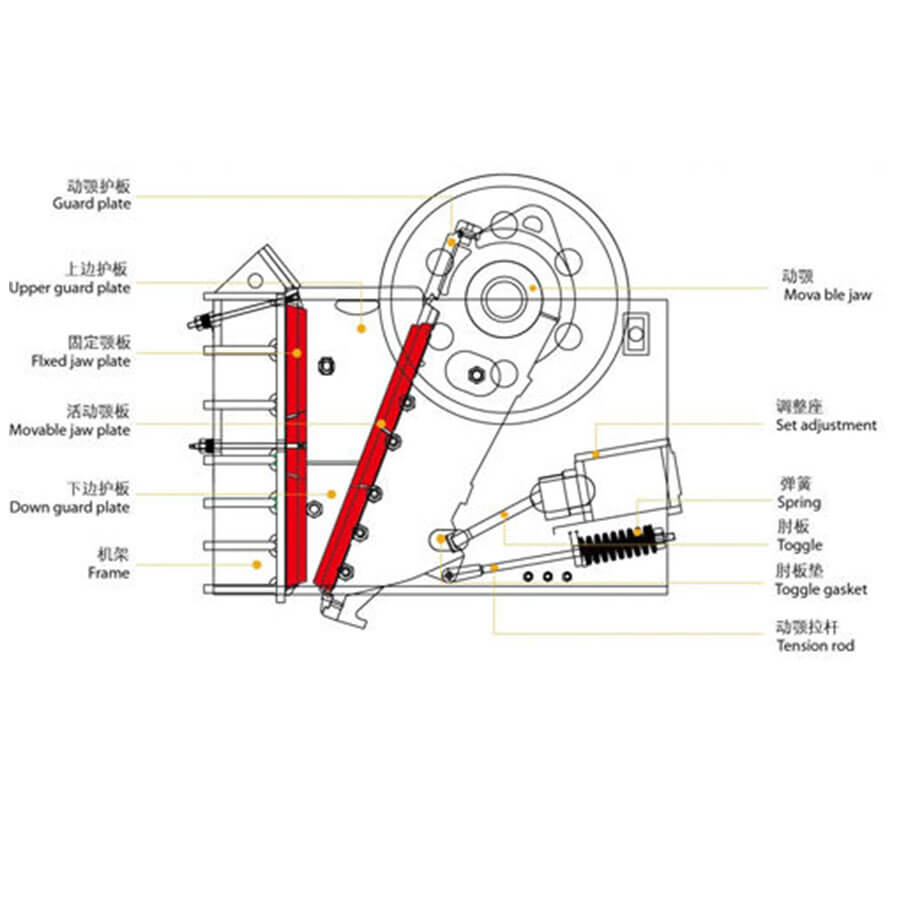

Product Structure

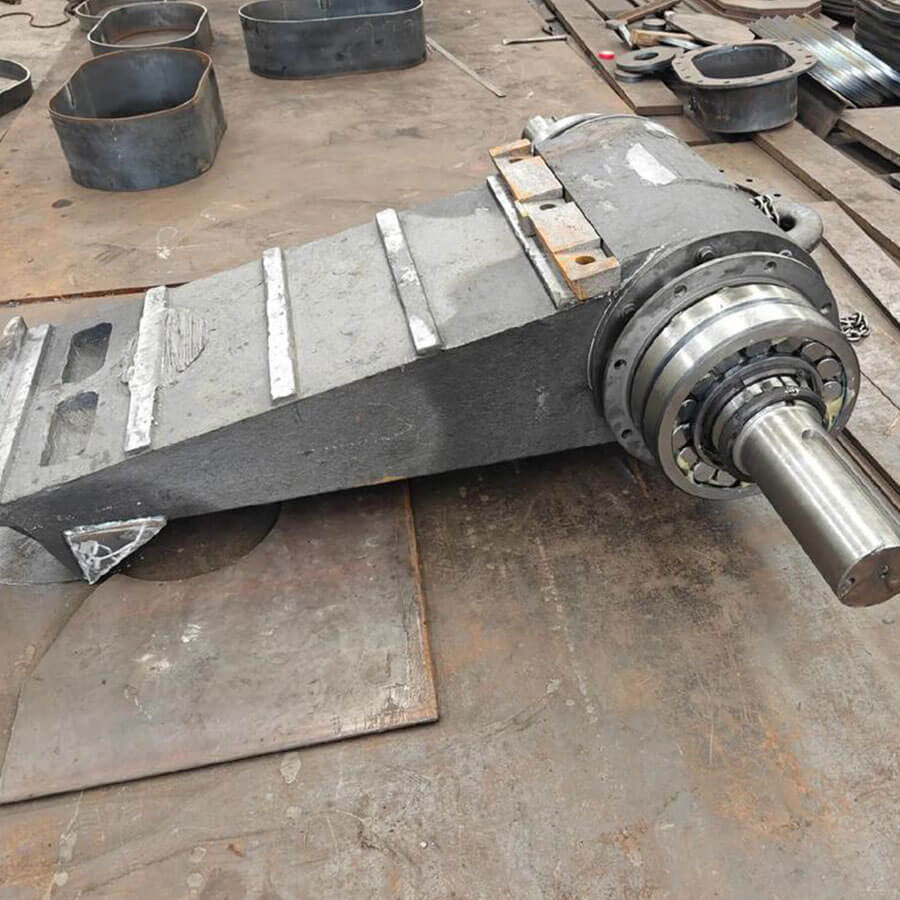

The jaw crushers is primarily composed of five core components: the heavy-duty welded frame, crushing mechanism, transmission system, adjustment device, and lubrication system.
The frame features a box-type structural design, constructed from high-strength steel plates through welding, with internal reinforcement ribs to ensure structural stability under heavy-load operating conditions.

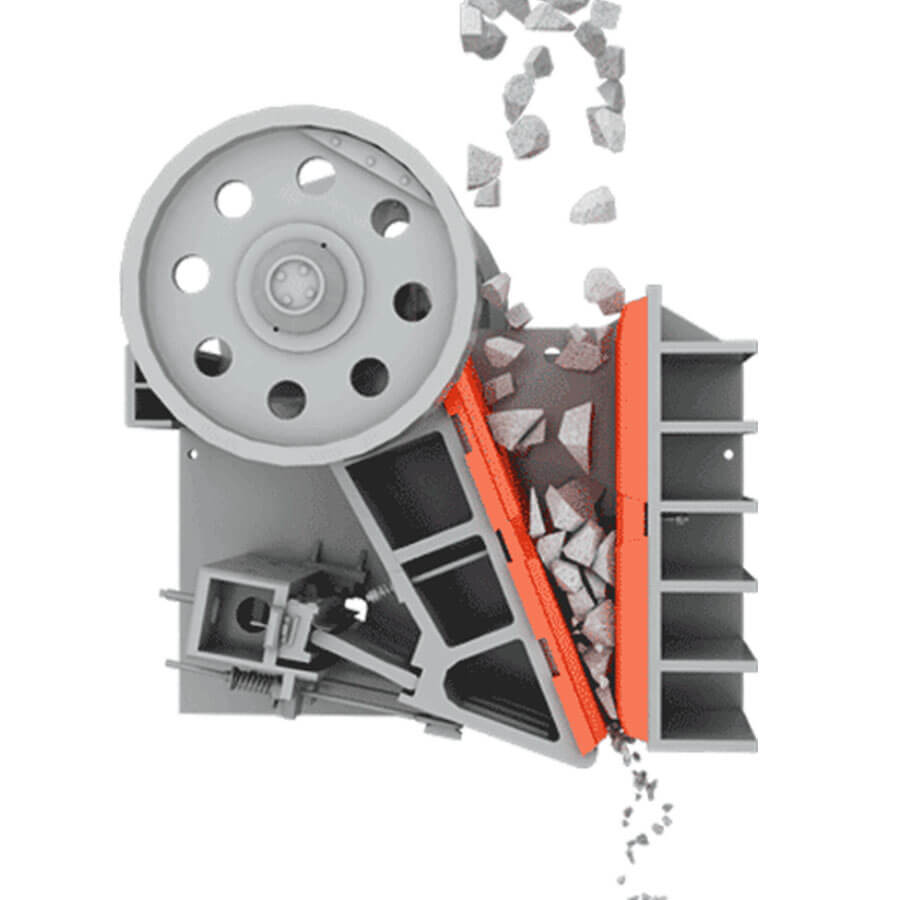

How it works

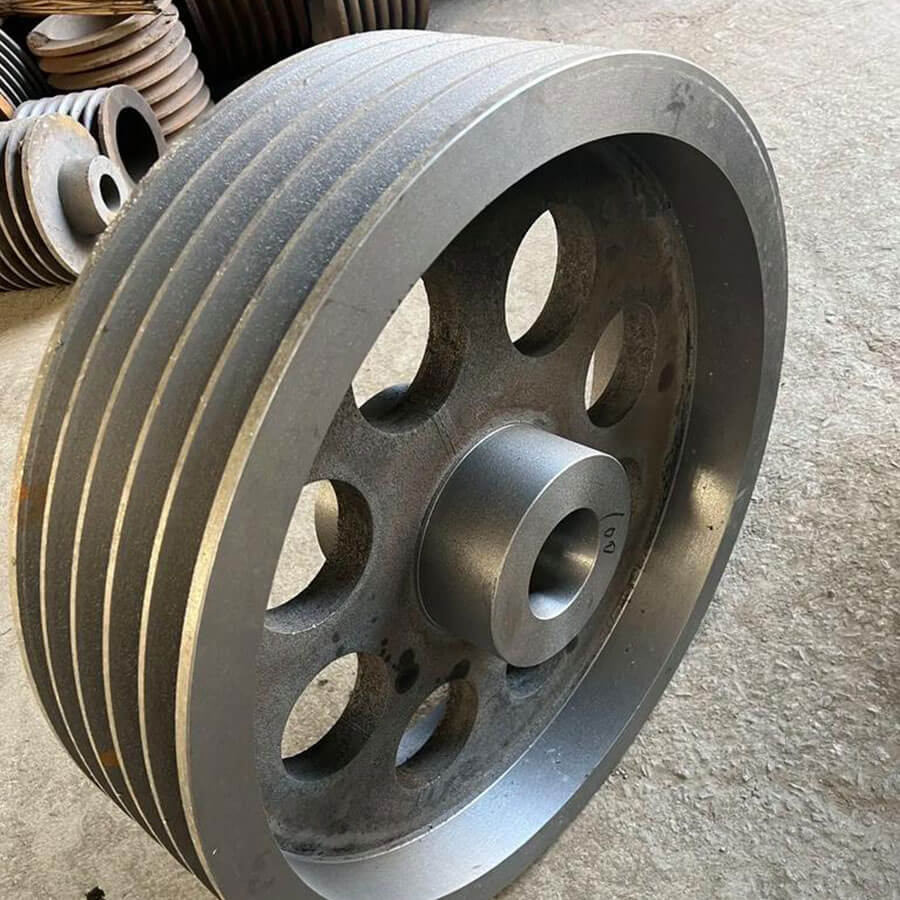

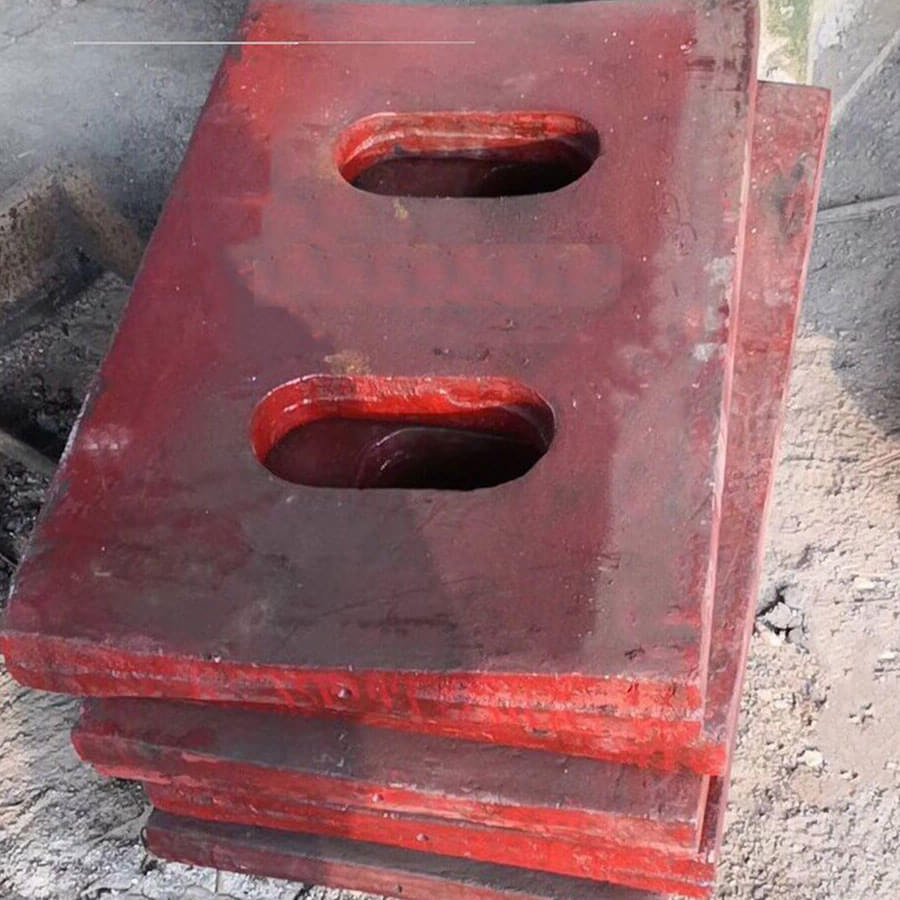

The motor drives the eccentric shaft to rotate through the pulley, causing the movable jaw to make periodic reciprocating motion. When the movable jaw approaches the fixed jaw, the material is crushed by compression, splitting and bending; when the movable jaw leaves the fixed jaw, the crushed material is discharged from the lower part of the crushing chamber. The product size can be controlled by adjusting the discharge opening.

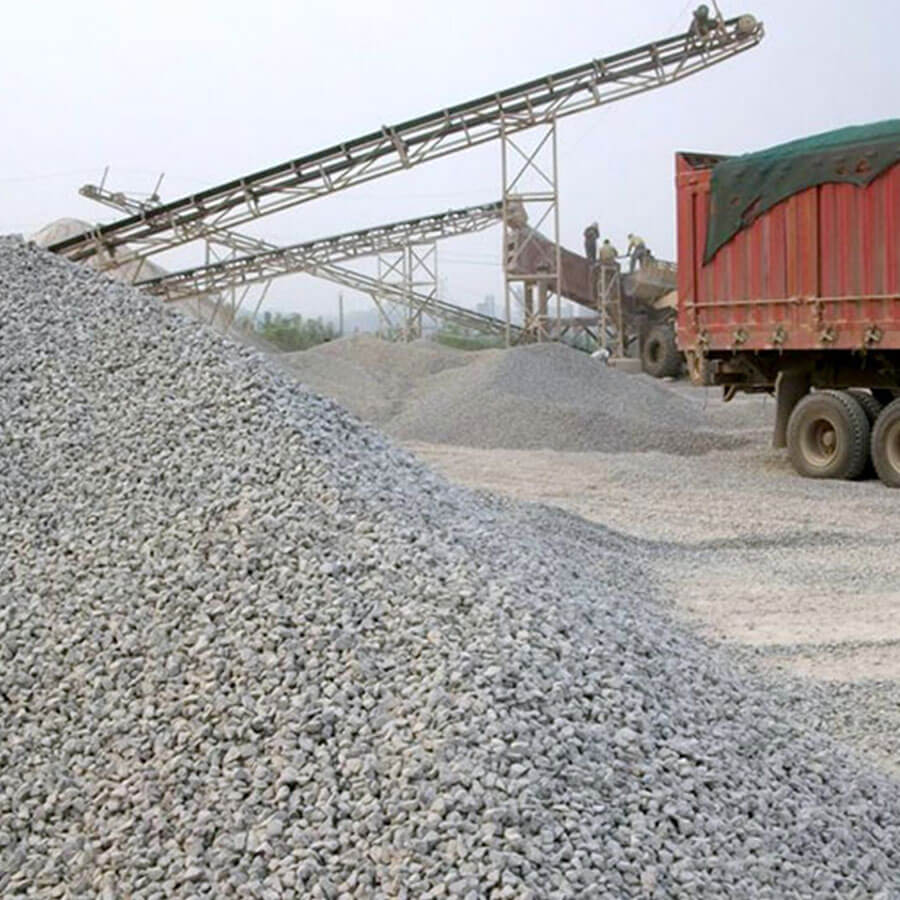

Application Areas

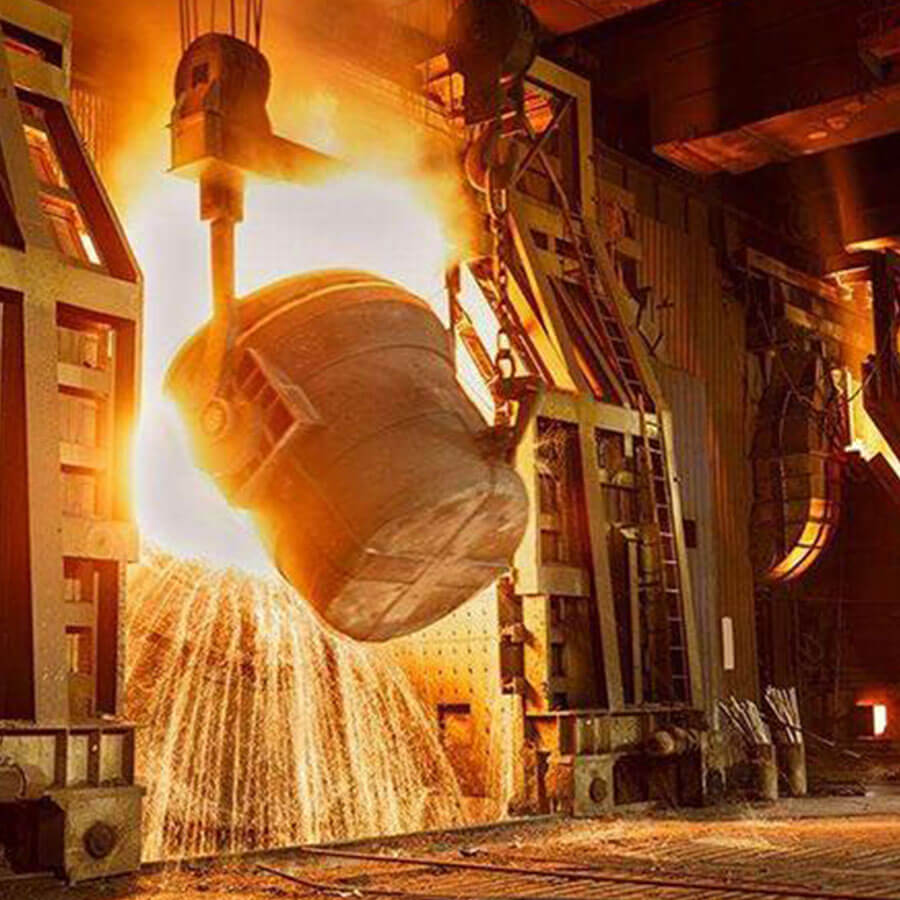

Jaw crusher is a kind of crushing equipment widely used in mining, metallurgy, construction, highway, railway, cement and other industries. It is mainly used for coarse or medium crushing of various materials with high hardness. Its working principle is to use the relative movement between the two jaw plates to squeeze, crush or shear the materials to achieve the purpose of crushing.
Product Advantages
Jaw crushers is simple in structure, easy to manufacture and reliable in operation.
1.Low noise and little dust.
2.Its crushing ratio is large and the product granularity is uniform.
3.Simple structure, reliable operation and low operating cost.
4.The lubrication system is safe and reliable, the parts are easy to replace, and the equipment maintenance is simple.
5.The crushing chamber is deep and there is no dead zone, which improves the feeding capacity and output.
6.Energy saving of equipment: 15%~30% for single machine and more than double for system.
7.The discharge port has a wide adjustment range, which can meet the requirements of different users.
Product Parameters
| Model | Feeding opening size(mm) | Max feeding size (mm) | Discharging opening size(mm) | Capacity (t/h) | Motor power(kw) | Weight (t) |
| PE150X250 | 150X250 | 125 | 10-40 | 1-3 | 5.5 | 0.8 |
| PE200X300 | 200X300 | 180 | 15-50 | 2-6 | 7.5 | 1.2 |
| PE200X350 | 200X350 | 180 | 18-70 | 3-10 | 11 | 1.5 |
| PE250x400 | 250×400 | 210 | 20-60 | 5-21 | 15 | 2.8 |
| PE400x600 | 400×600 | 340 | 40-100 | 16-60 | 30 | 6.65 |
| PE500x750 | 500×750 | 425 | 50-l00 | 40-ll0 | 55 | 11.73 |
| PE600x900 | 600×900 | 500 | 65-180 | 80-180 | 55-75 | 16.13 |
| PE750xl060 | 750xl060 | 630 | 80-180 | 110-320 | 90-110 | 30 |
| PE900x1200 | 900×1200 | 780 | 95-225 | 220-450 | 110-132 | 49 |
| PE1000x1200 | l000x1200 | 850 | 195-280 | 280-550 | 110-132 | 51 |
| PEl200x1500 | l200x1500 | 1020 | 150-300 | 400-800 | 160-220 | 109 |
| PEX150x750 | 150×750 | 120 | 1 8-48 | 8-25 | 15 | 35 |
| PEX250x750 | 250×750 | 210 | 20-50 | 13-35 | 30 | 4.96 |
| PEX250xl000 | 250xl000 | 210 | 25-60 | 16-52 | 30-37 | 6.5 |
| PEX250xl200 | 250×1200 | 210 | 25-60 | 20-61 | 37-45 | 88 |
| PEX300xl300 | 300xl300 | 250 | 20-90 | 25-95 | 55-75 | 12.6 |
Have you decided on the model you want to buy? If you can’t find the model you want, please contact us for consultation.

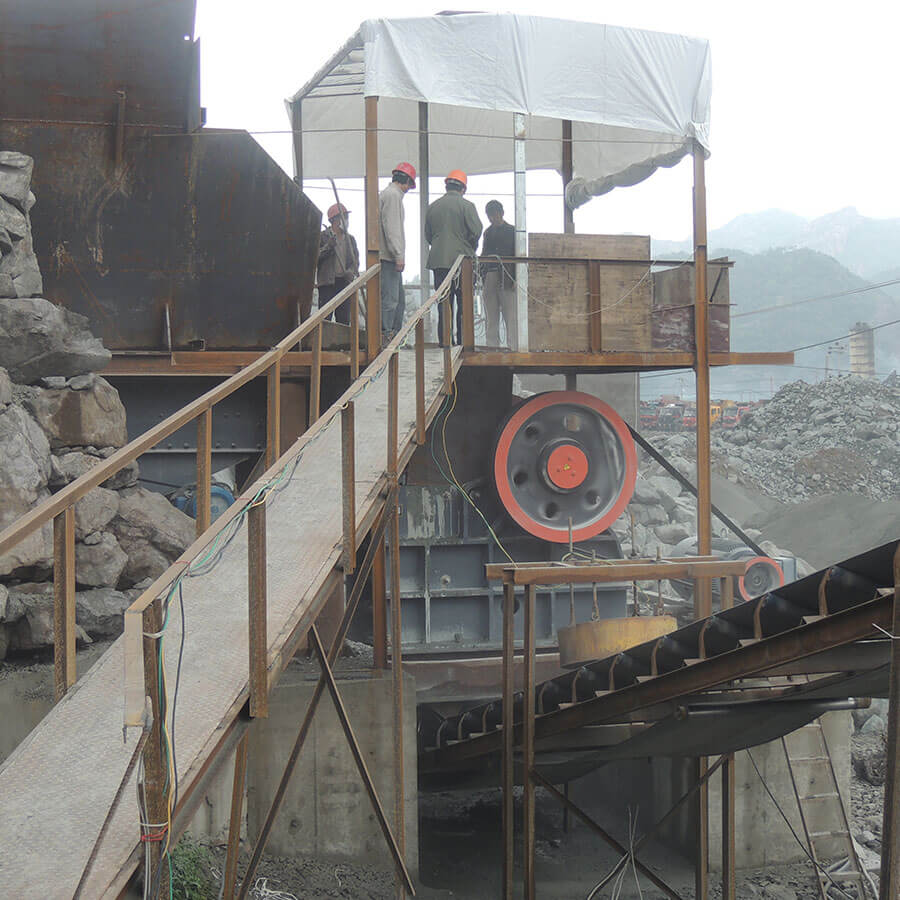

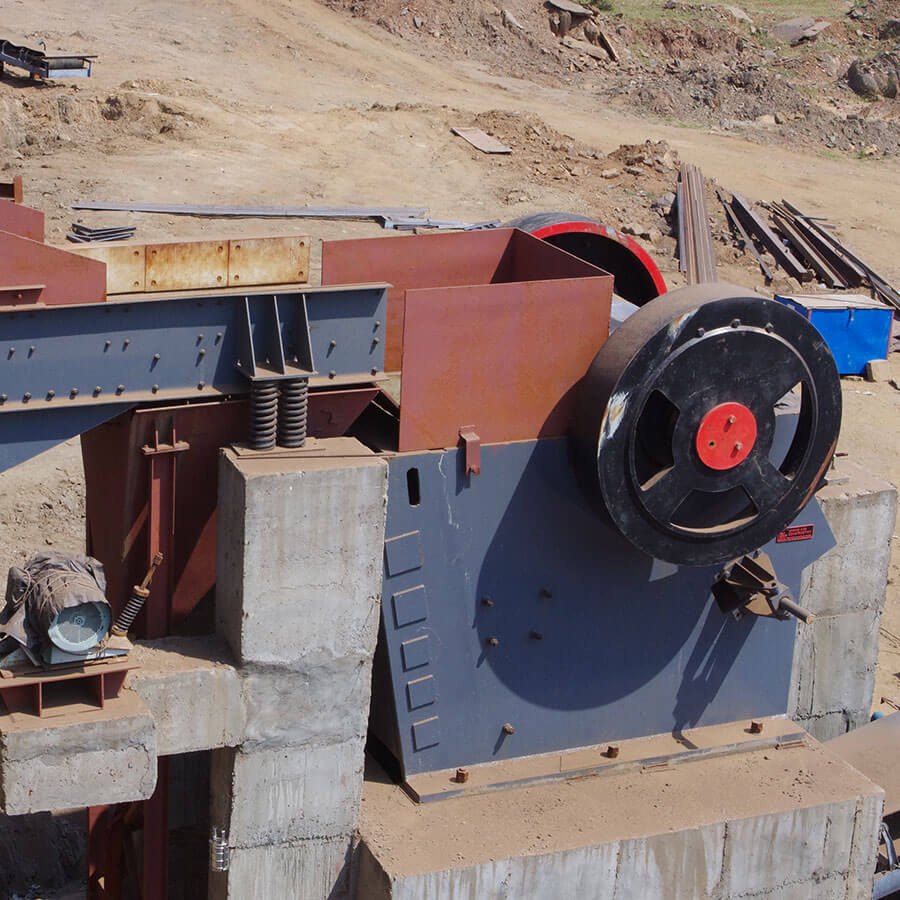

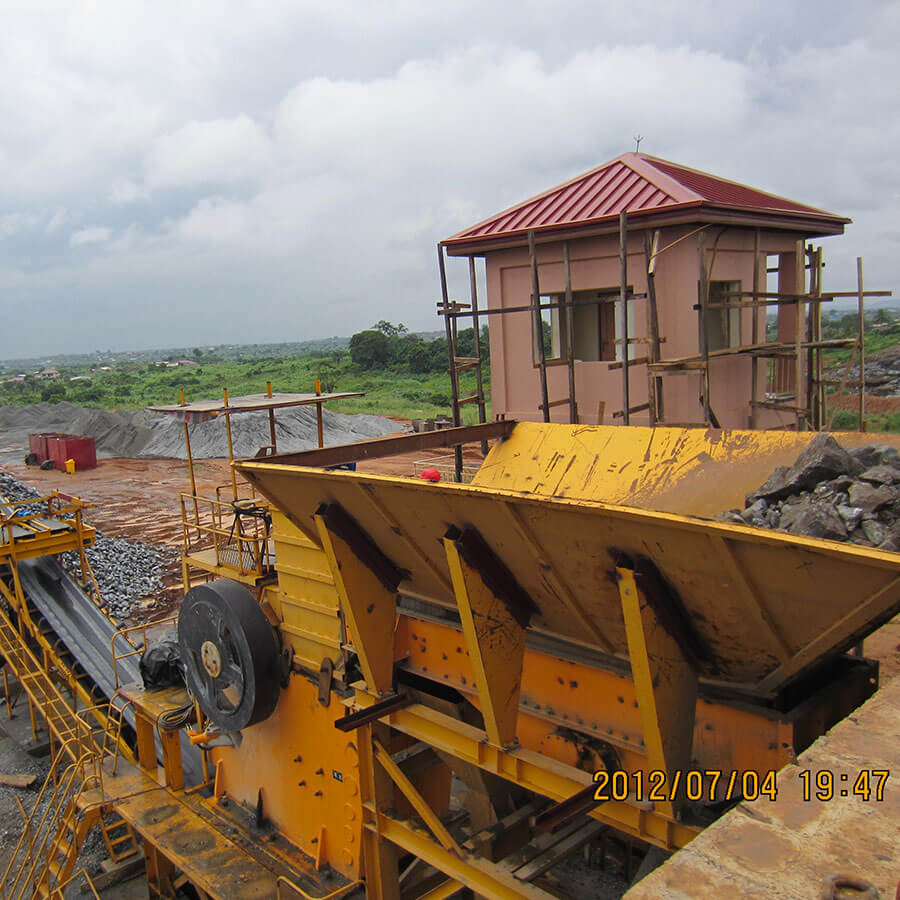

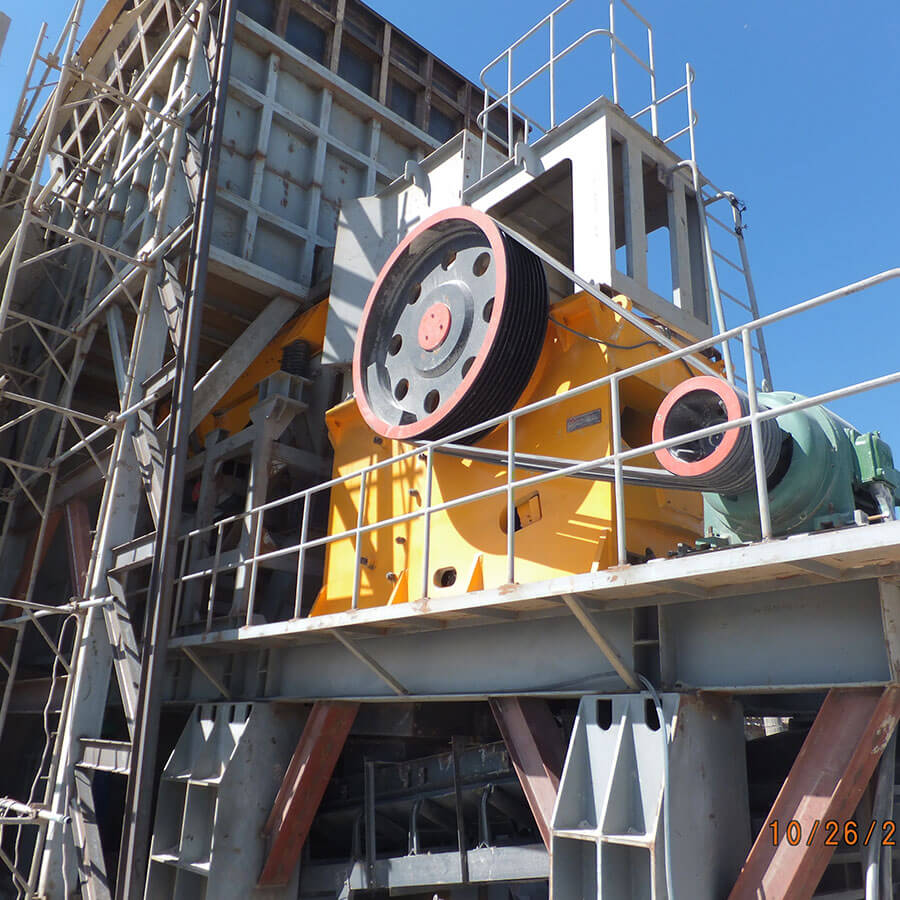

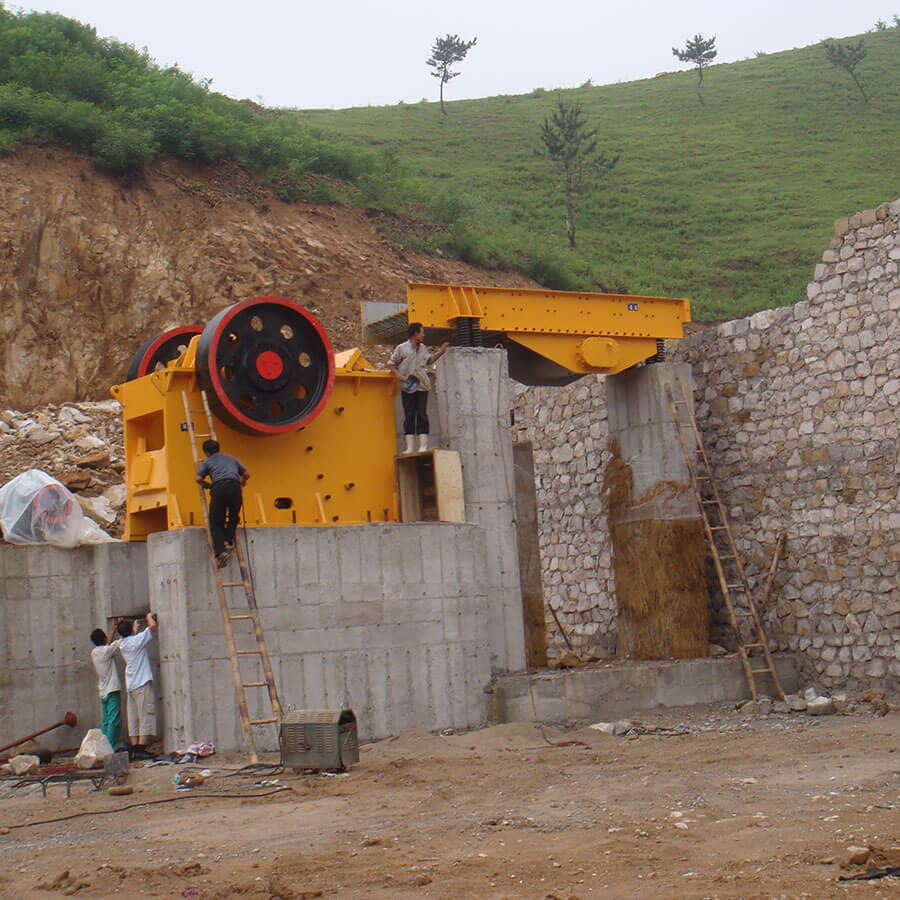

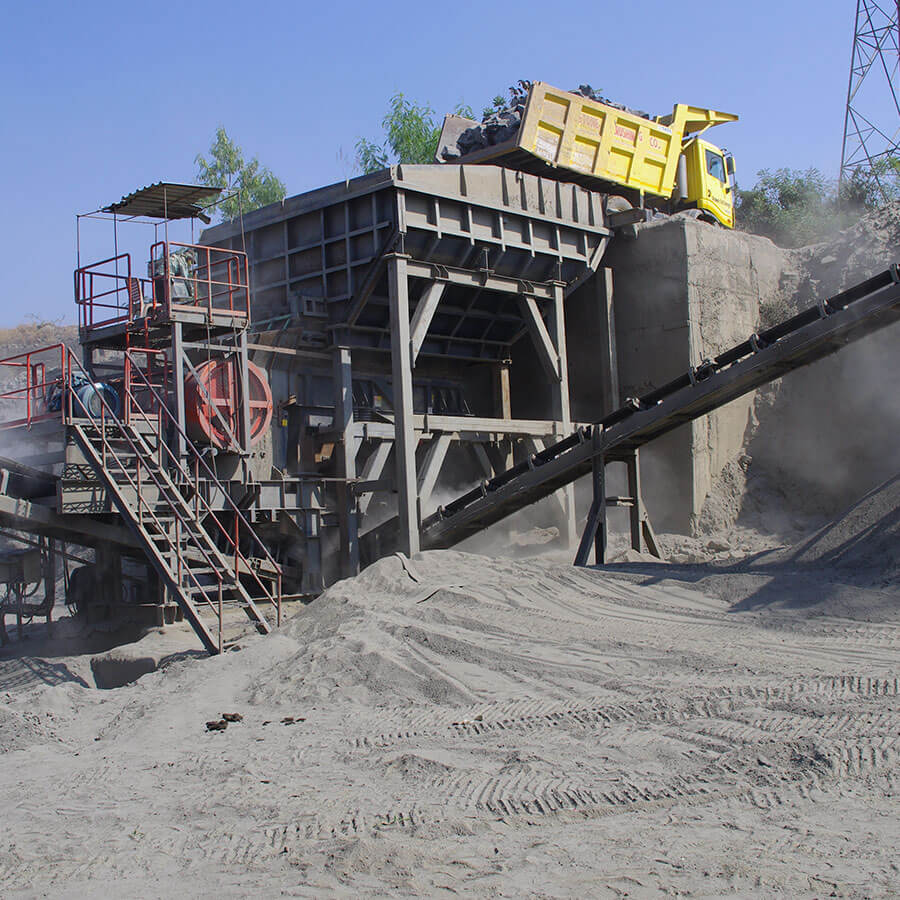

More related cases
The jaw crusher produced by Henan Reacore can be used for ore crushing. Whether it is the crushing operation in mining, metallurgy, construction, highway, railway, cement industry, or the secondary crushing of construction waste bricks, the jaw crusher of Henan Reacore is your best choice.
Why Choose Us
We have a professional team of engineers who can design and manufacture production solutions according to your needs.
We have a professional modern production workshop, and all the equipment leaving the factory has been quality inspected.
We have many years of manufacturing experience, all equipment is independently developed and produced, the price is more favorable.
We provide a full range of technical support and can provide you with high-quality purchasing services and after-sales services.
