Single Shaft Shredder Machine For Sale
Applicable materials:
Plastics, machine head blocks, wood, waste packaging paper, cardboard, cables, waste aluminum, chemical fibers, sponges, fiberglass products, automobile windshields, sealing strips, etc.
Feeding size: ＜1500 mm
Power: 22-75 Kw
Capcity: 0.5-3 T/h
What is a single shaft shredder
The single-shaft shredder is a particularly practical machine with a wide range of shredding types that can meet the solid waste shredding needs of various industries.
Mainly used for waste shredding in industries such as plastics, chemicals, wood, biology, rubber, printing, and metal. Such as plastics, rubber head materials, domestic garbage, nozzle materials, pipes, tires, wires, central control containers, wood, shoes, paper, etc.
Types of single shaft shredder We Sale
The single-shaft shredders produced by Henan Reacore have a wide range of shredding types, which can meet the solid waste shredding needs of various industries. According to the capacity and model, they can be divided into RC-DS600, RC-DS800, RC-DS800(S), RC-DS1000, RC-DS1200, etc.
You can choose the most suitable model according to the actual raw materials and capacity requirements.
single shaft shredder

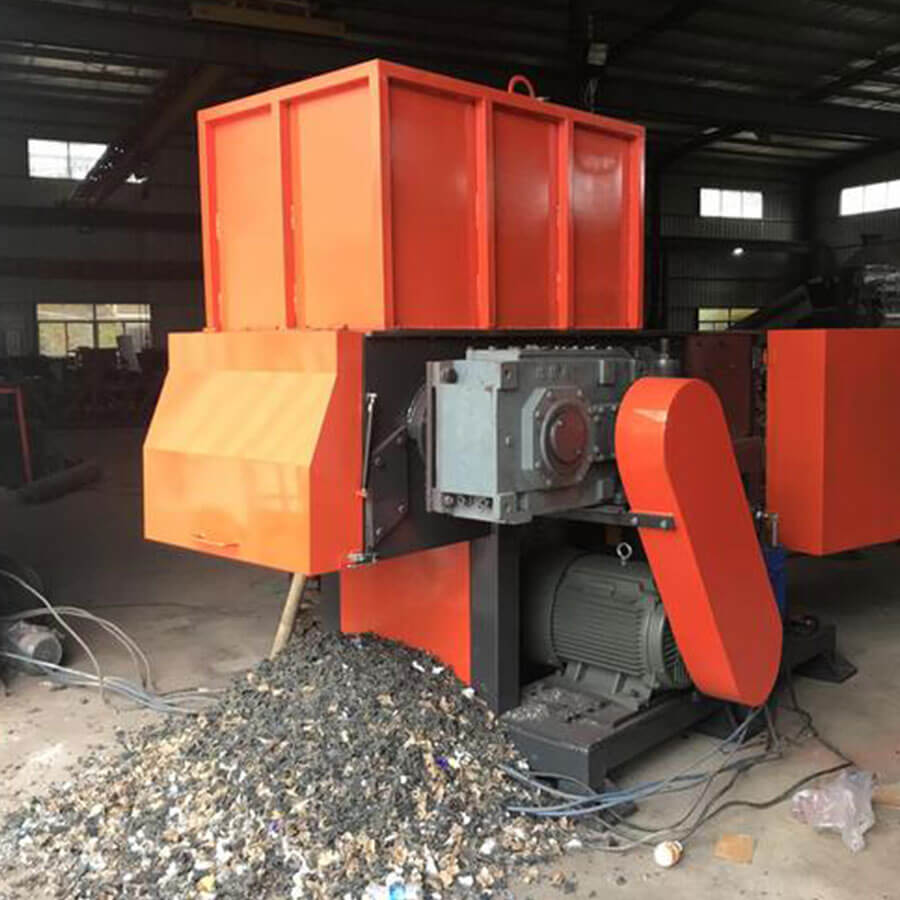

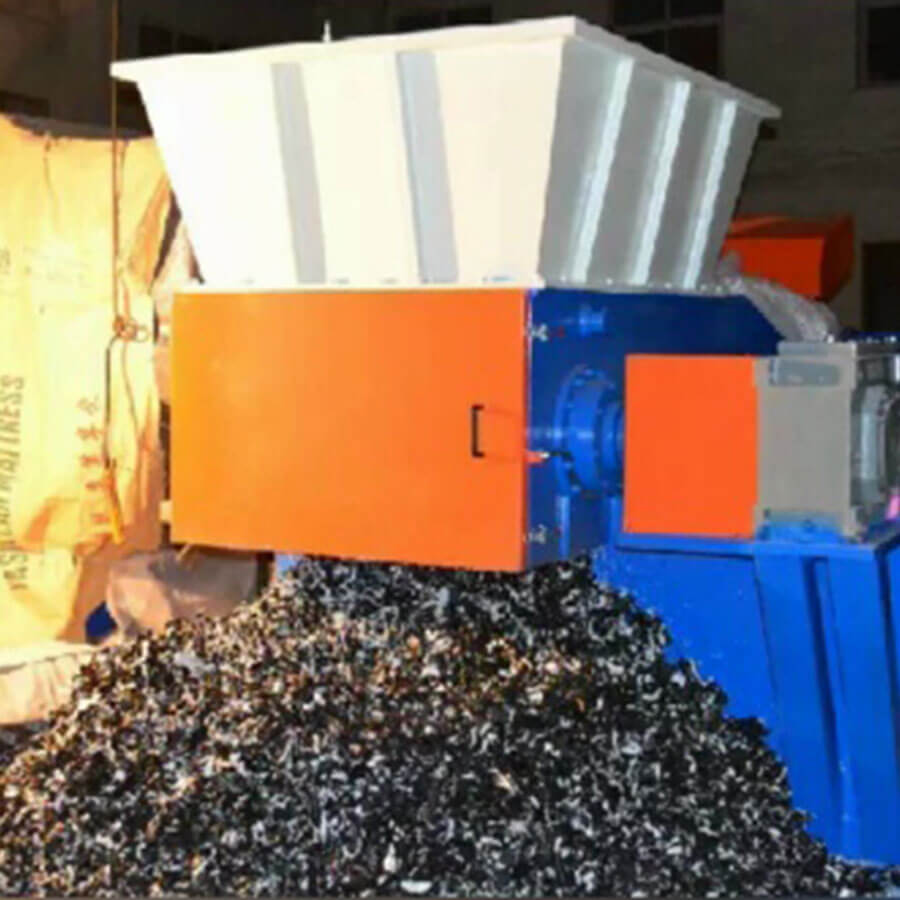

The single-shaft shredder produced by Henan Reacore is a widely used equipment for waste material processing, mainly used for shredding plastics, rubber, metal, wood, waste electrical appliances, cables, tires, paper and other materials.
It can efficiently shred large pieces of waste into small particles or flakes by rotating a single shaft to drive the shearing and tearing action of the cutter. The capacity can reach 0.5-3t/h, and the feed size is 600-1500mm.
single shaft shredder

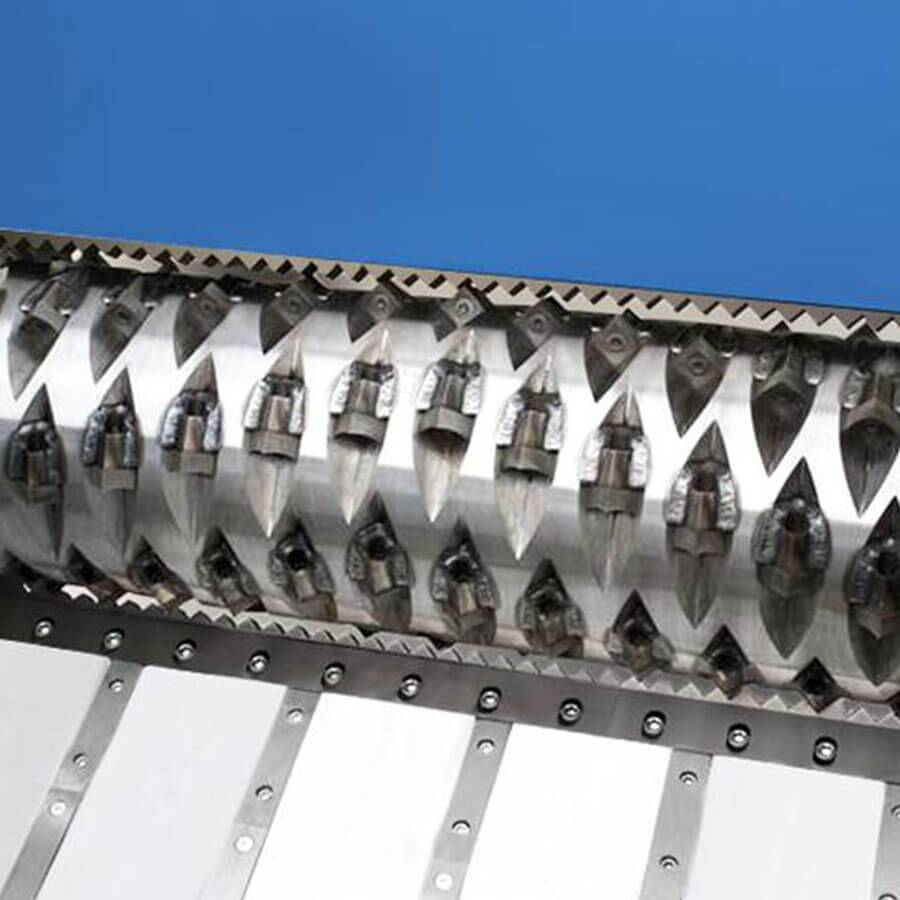

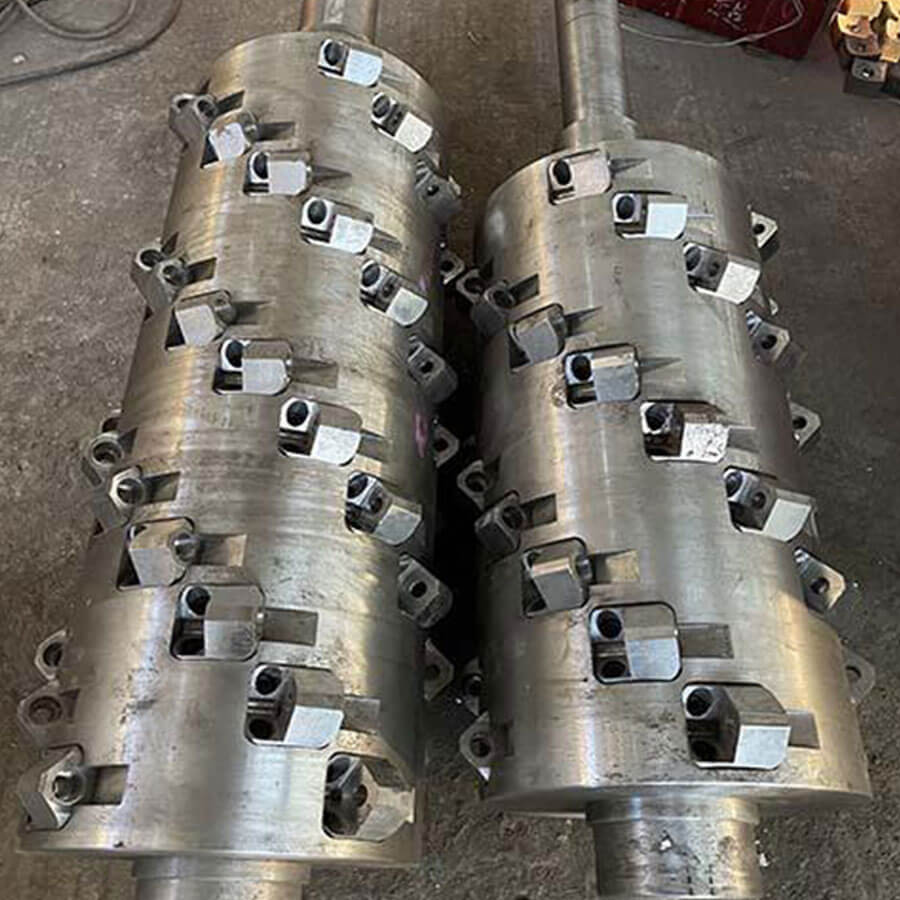

The single-shaft shredder produced by Henan Reacore can choose the appropriate knife roller and screen according to the customer’s material requirements.
Capacity: 0.5-3 t/h
Feeding size: 600-1500 mm
Voltage:220v/380v/415v/440v/480v
Product Structure

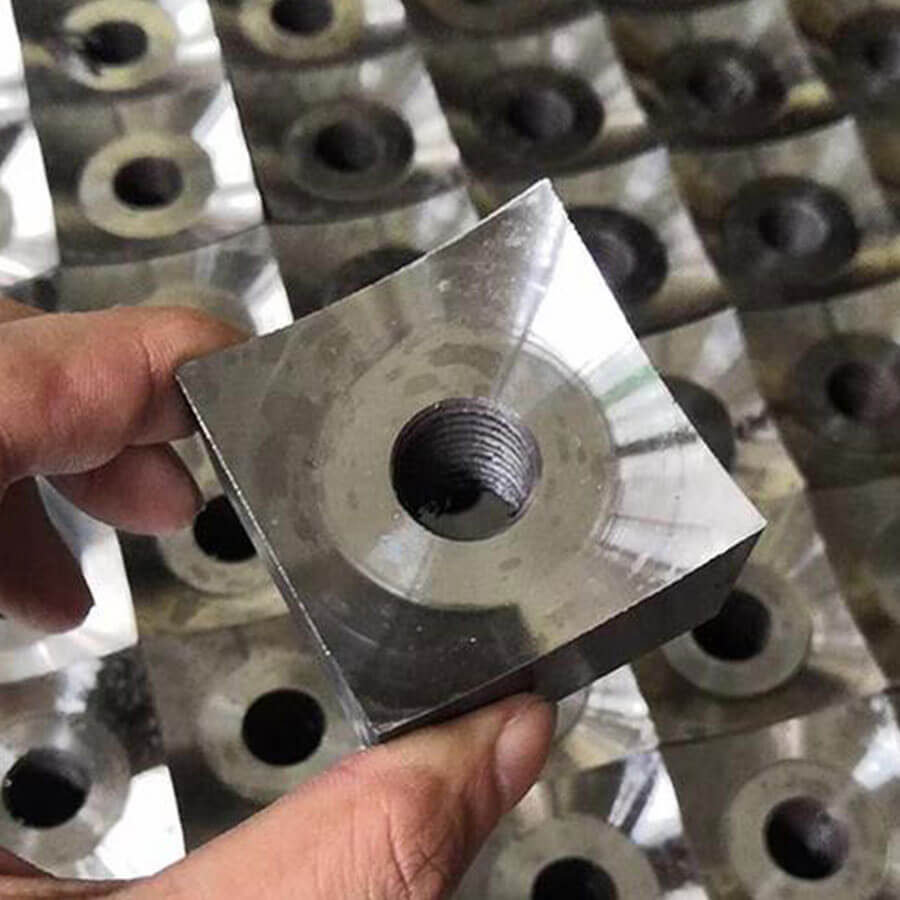

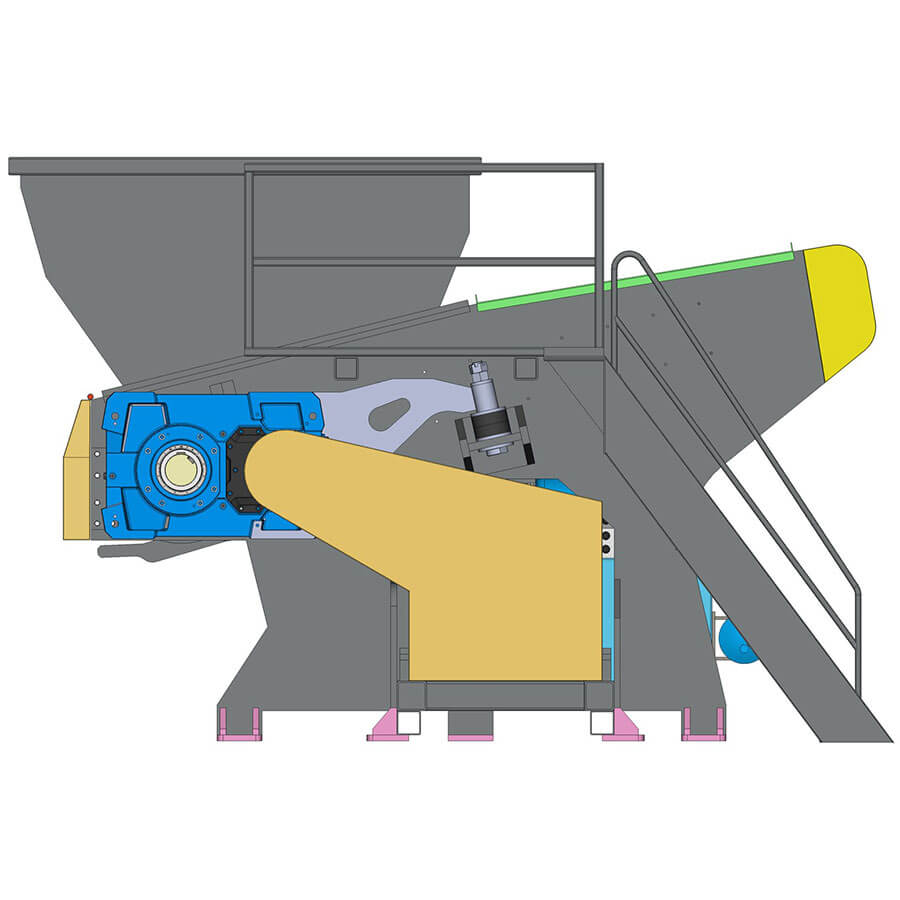

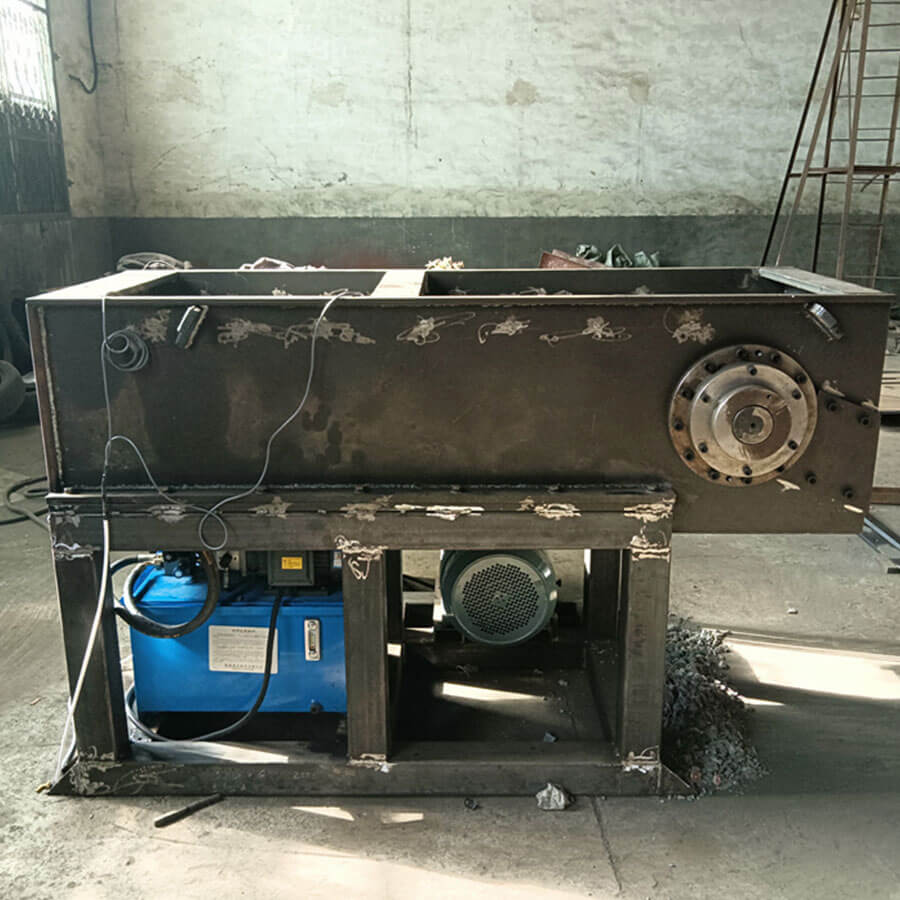

The single-shaft shredder is mainly composed of a blade spindle, a fixed blade, a bearing box, a box bracket, a feeding system, a hydraulic pushing system, a power system, and an electrical control system.
How it works

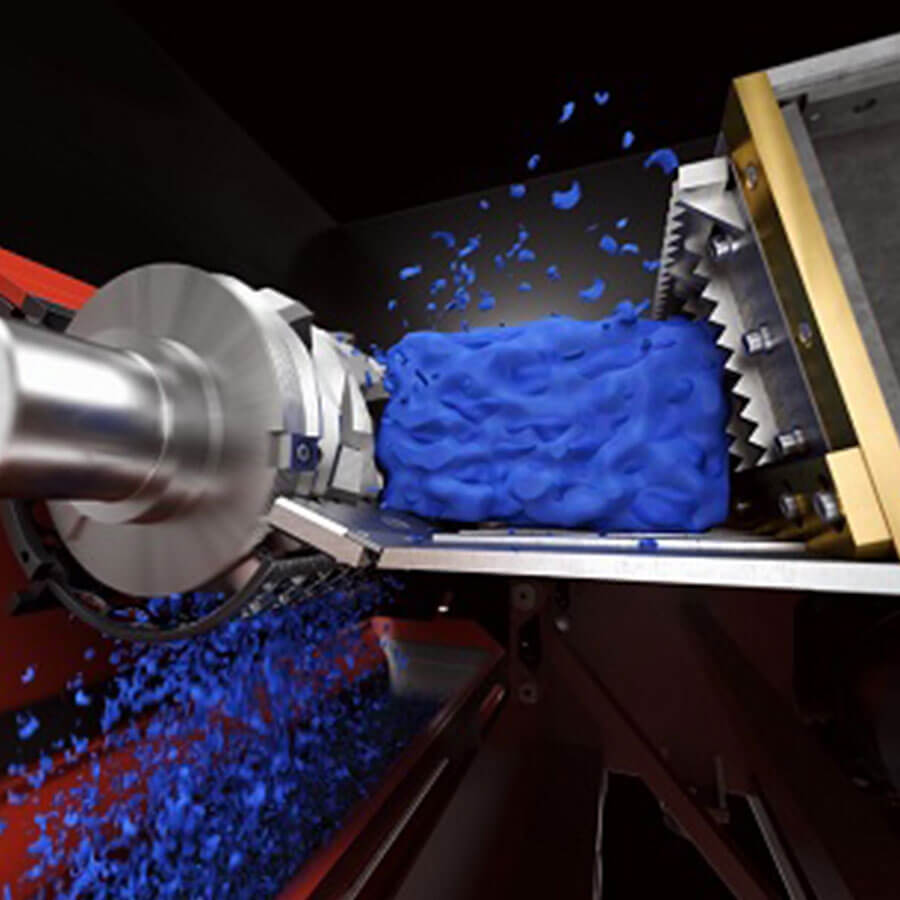

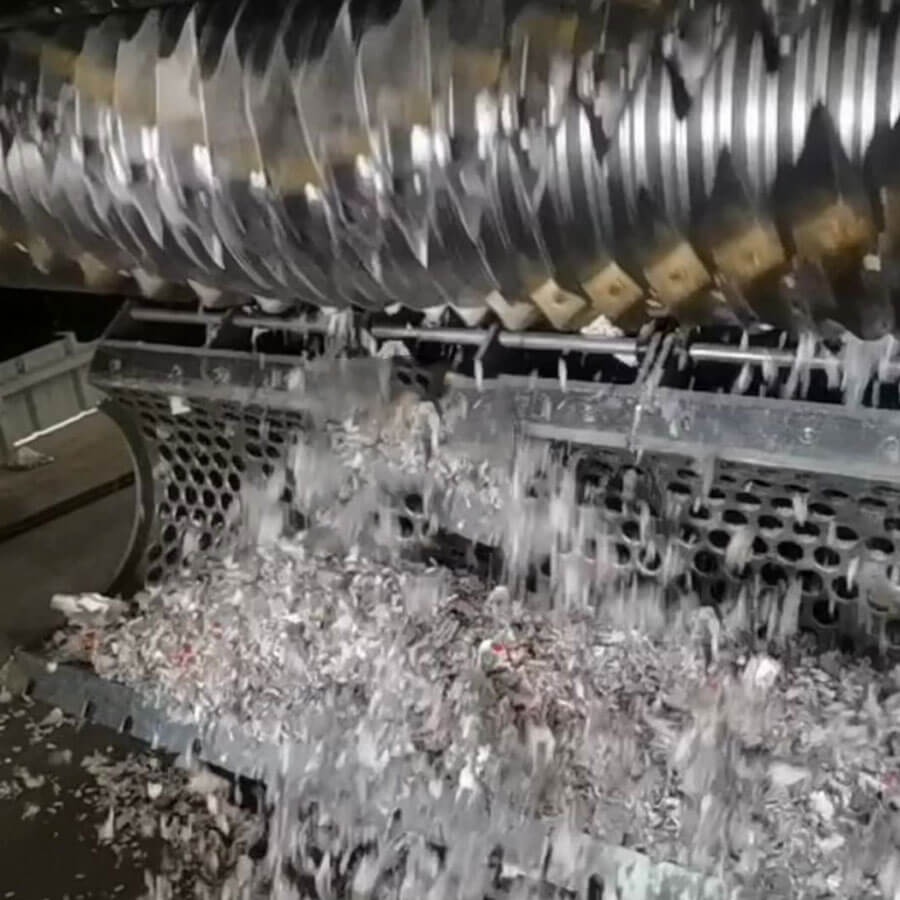

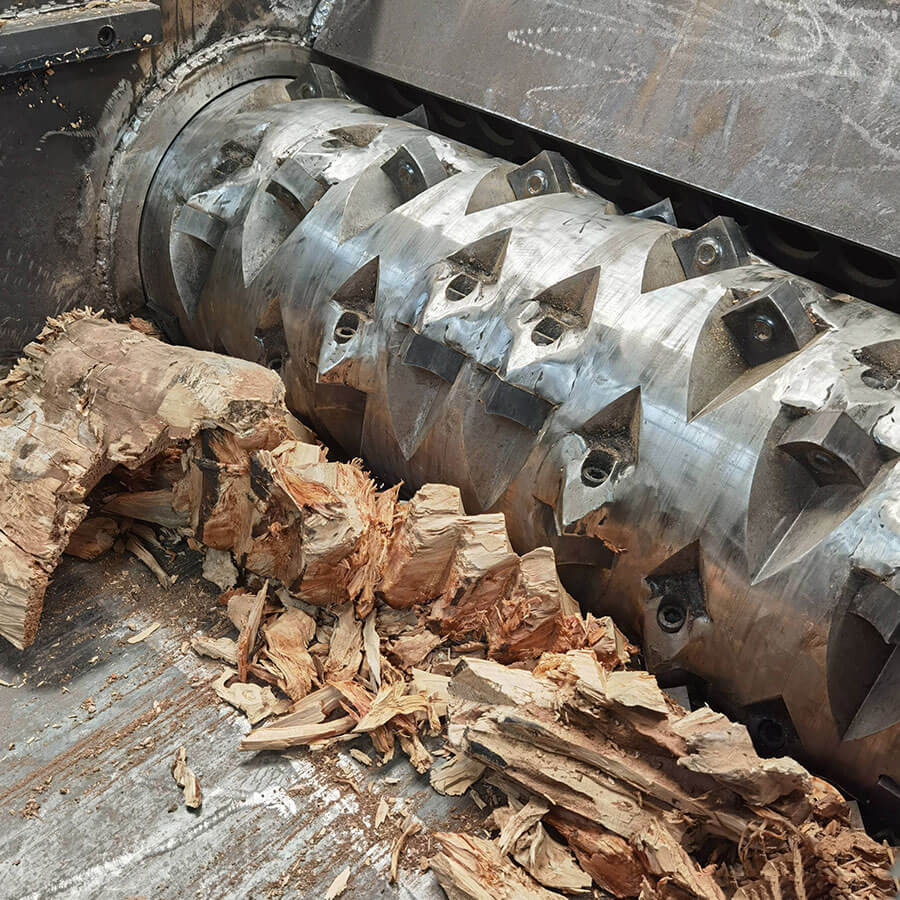

The material enters the shredding box through the feeding system. The box is equipped with shredding blades. The pushing box pushes the material to the vicinity of the blades. The material is torn into small pieces through the combined effects of tearing, squeezing and shearing by the shredding blades and discharged from the screen holes.

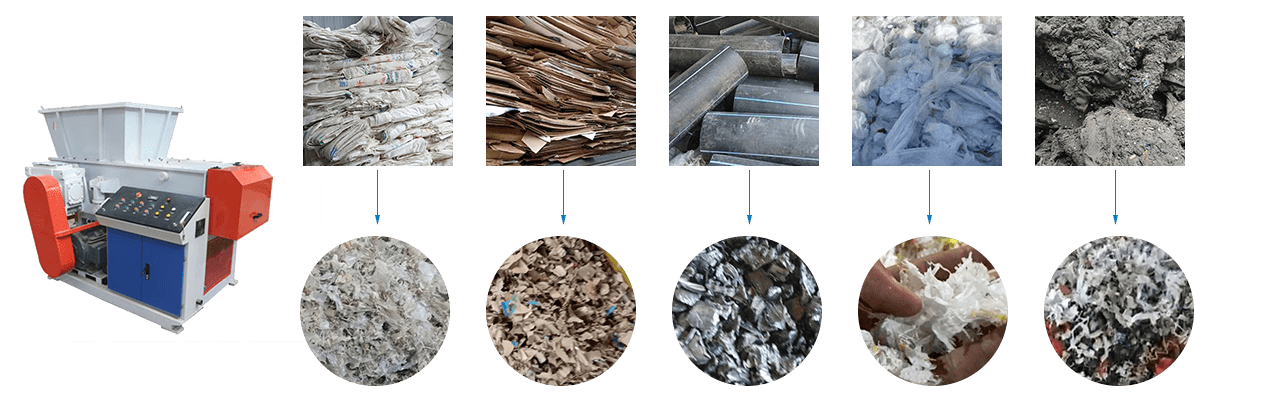

Application Areas

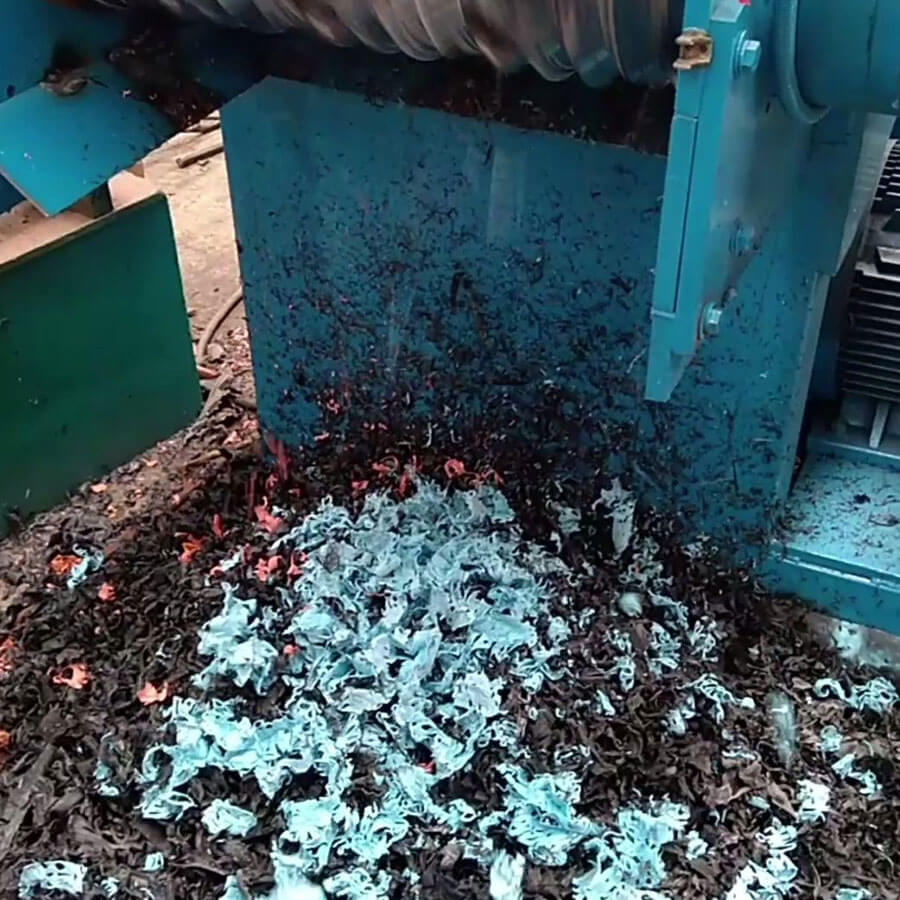

The single-shaft shredder produced by Henan Reacore is suitable for shredding large, irregularly shaped and hard materials. It is often used for shredding and recycling waste in the fields of waste plastics, waste tires, metal waste, waste paper, electronic waste, etc., with high processing efficiency. It can also be used in urban waste treatment, especially in the process of waste sorting, the single-shaft shredder can efficiently process large pieces of garbage and reduce its volume.
Product Advantages
1. Emergency stop switch, power-off protection, multiple protections, in line with EU CE standards.
2. Shock absorber, buffers vibration during machine operation, and increases the service life of the reducer and spindle.
3. External bearings, effectively prevent broken materials from entering the bearings, and increase the service life of the bearings.
4. The pusher is equipped with a copper guide to ensure smooth operation of the pusher and easy replacement.

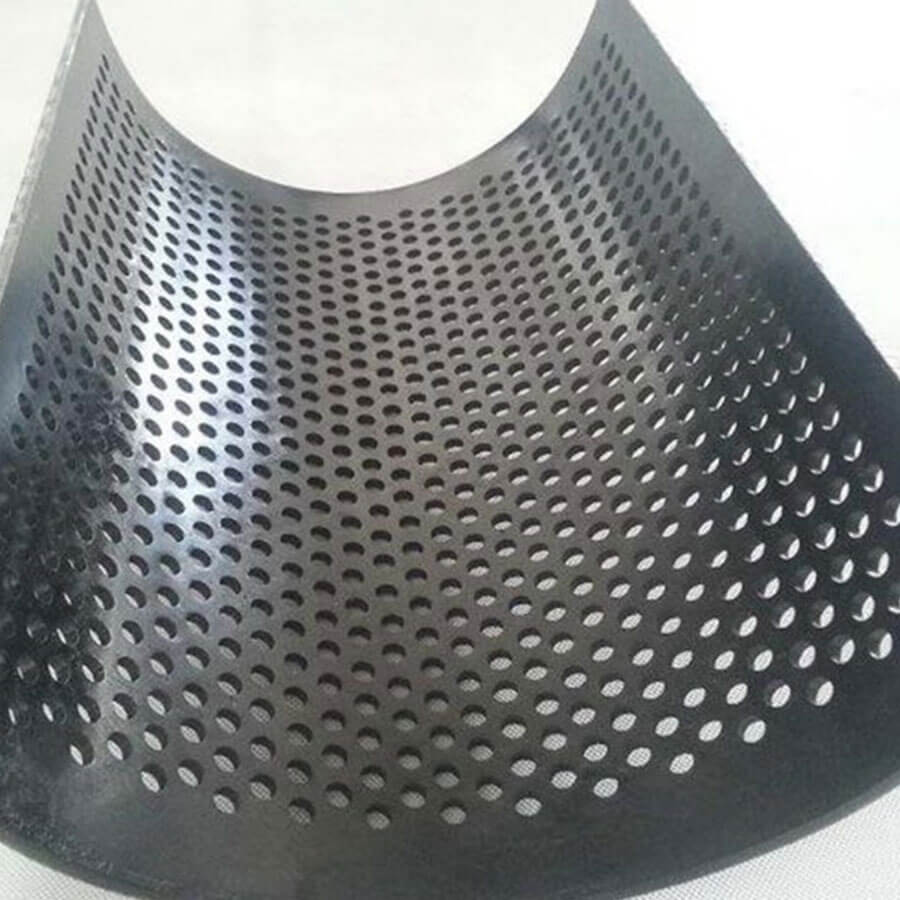

5. The mesh size of the screen can be selected.
6. Hydraulic pusher system is adopted.

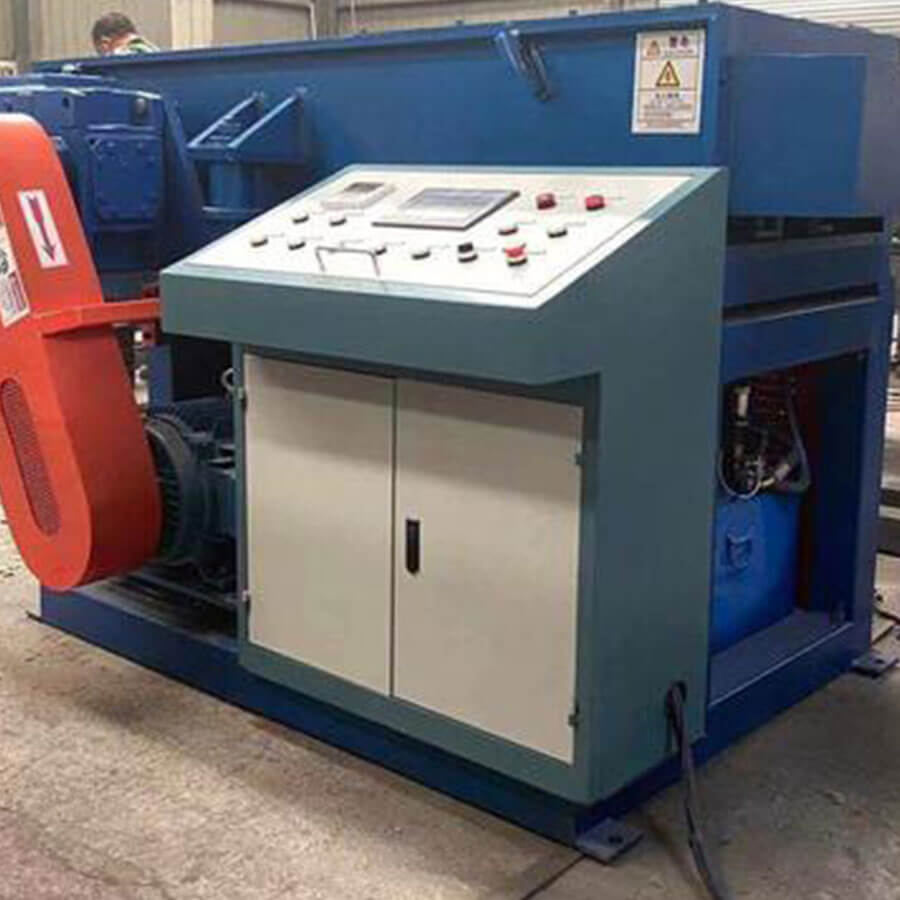

7. Independent intelligent electronic control system.
8. Removable installation of the cutter head, more convenient maintenance.
Product Parameters
| Model | RC-DS600 | RC-DS800 | RC-DS1000 | RC-DS1200 |
| Main motor power (kw) | 22 | 45 | 55 | 75 |
| Hydraulic pump station power (kw) | 3 | 4 | 5.5 | 5.5 |
| Hydraulic pump station size (mm) | 500×600 | 600×700 | 700×800 | 800×800 |
| Number of moving knives (pcs) | 30 | 38 | 46 | 58 |
| Number of fixed knives (pcs) | 2 | 2 | 2 | 3 |
| Shredding chamber size (mm) | 600×600 | 800×800 | 1000×1000 | 1200×1200 |
| Weight (t) | 2.7 | 3.8 | 4.6 | 5.5 |
| Dimensions (mm) | 2200x1400x1900 | 2800x1700x1900 | 3400x1900x2000 | 3600x2000x2400 |
| Capacity（t/h） | 0.5-1 | 1-1.5 | 1.5-2 | 2-3 |
Have you decided on the model you want to buy? If you can’t find the model you want, please contact us for consultation.
More related cases
The single-shaft shredder produced by Henan Reacore has a wide range of applications. Whether it is used to shred and recycle waste plastics, waste clothes, waste wood, waste head materials, waste cardboard, or shred and recycle waste industrial waste and domestic waste, Henan Reacore’s single-shaft shredder is your best choice.
Why Choose Us
We have a professional team of engineers who can design and manufacture production solutions according to your needs.
We have a professional modern production workshop, and all the equipment leaving the factory has been quality inspected.
We have many years of manufacturing experience, all equipment is independently developed and produced, the price is more favorable.
We provide a full range of technical support and can provide you with high-quality purchasing services and after-sales services.
